Cold Worked Board DWG Detail for AutoCAD

Cold Worked Board DWG Detail for AutoCAD

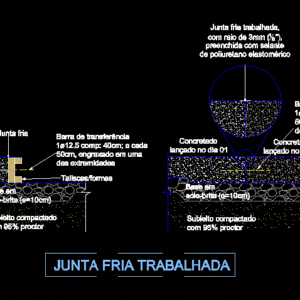

Construction detail of Fria Board Worked for reinforced concrete paving

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

subleito compacted with proctor, based on, launched on the day of, transfer bar comp: each grease on one end, cold joint, cold ray of elastomeric polyurethane sealant, cold joint worked

Raw text data extracted from CAD file:

Subleito compactado com 95% proctor Subleito compactado com 95% proctor Base em solo-brita (e=10cm) Base em solo-brita (e=10cm) \A1;12cm Concretado lançado no dia 01 Concretado lançado no dia 02 Concretado lançado no dia 01 Taliscas/formas Barra de transferência 1ø12.5 comp: 40cm; a cada 50cm, engraxado em uma das extremidades Barra de transferência 1ø12.5 comp: 40cm; a cada 50cm, engraxado em uma das extremidades Junta fria \A1;Junta fria trabalhada, \A1;com raio de 3mm (\A1;\S1#8;"), \A1;preenchida com selante \A1;de poliuretano elastomérico JUNTA FRIA TRABALHADA
