Community Center, Community Hall, Multipurpose Hall 2D DWG Plan for AutoCAD

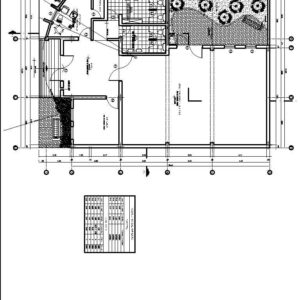

Plan, elevation and sectional view of community center. The floor plan has multipurpose room for community use, hall, office, administrative area, archives rooms, men’s and women’s restroom with garden on front and rear side.In the elevation and sectional views the doors, windows and applied materials were shown.The total foot print area of the plan is approximately 300 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hospital & Health Centres |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 250 - 499 m² (2691.0 - 5371.2 ft²) |
| Building Features | Deck / Patio, Garden / Park |
| Tags | autocad, block, center, community, community center, community hall, DWG, facilities |
