Concrete Protection For Buried Pipe DWG Detail for AutoCAD

Concrete Protection For Buried Pipe DWG Detail for AutoCAD

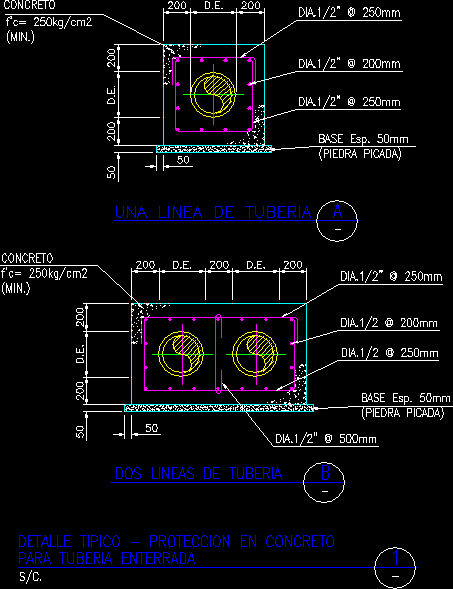

Typical detail – Protection in armed concrete for buried pipes of PVC or GRP burieds – applied in zone of heavy areas.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

for rainwater drainage, esc:, rectangular concrete channel, a line of pipe, two lines of pipe, concrete, typical detail protection in concrete, from., esp base, concrete, esp base, for buried pipe

Raw text data extracted from CAD file:

\A1;200 \A1;200 \A1;200 \A1;200 \A1;50 \A1;50 \A1;200 \A1;D.E. \A1;D.E. \A1;D.E. \A1;D.E. \A1;D.E. \A1;200 \A1;200 \A1;200 \A1;200 \A1;50 \A1;50 PARA DRENAJE DE AGUAS DE LLUVIA ESC: 1=20 CANAL RECTANGULAR DE CONCRETO 0 0 0 0 0 0 DIA.1/2" @ 250mm DIA.1/2" @ 250mm DIA.1/2" @ 200mm UNA LINEA DE TUBERIA f'c= 250kg/cm2 (MIN.) 0 0 0 0 0 0 DIA.1/2" @ 250mm DIA.1/2 @ 200mm DOS LINEAS DE TUBERIA 0 CONCRETO f'c= 250kg/cm2 (MIN.) - S/C. DETALLE TIPICO - PROTECCION EN CONCRETO 1 D.E. D.E. D.E. D.E. D.E. DIA.1/2 @ 250mm DIA.1/2" @ 500mm BASE Esp. 50mm (PIEDRA PICADA) CONCRETO BASE Esp. 50mm (PIEDRA PICADA) PARA TUBERIA ENTERRADA - B - A

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, buried, concrete, dach, dalle, DETAIL, DWG, escadas, escaliers, lajes, mezanino, mezzanine, pipe, pipes, platte, protection, pvc, reservoir, roof, slab, stair, telhado, toiture, treppe, typical
