Concrete Slab Detail Cover DWG Detail for AutoCAD

Concrete Slab Detail Cover DWG Detail for AutoCAD

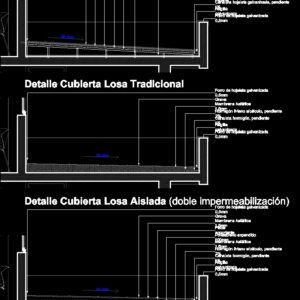

3 types of solutions cover a flat concrete slab roof.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

metal cover synthetic grass is transitable finish: metal iron grass view, covered traditional slab detail, insulated slab cover, pending channel, lightweight concrete slope, galvanized ruler, asphalt membrane, expanded polystyrene, supporting plate, asphalt membrane, gravel, galvanized sheet liner, pending channel, lightweight concrete slope, galvanized ruler, asphalt membrane, gravel, galvanized sheet liner, tinplate trough, galvanized ruler, metal truss metalcon calculation pending, waterproof metal profile, galvanized sheet liner, structural osb board, moisture barrier tydek felt, galvanized sheet liner, mineral wool insulation, corrugated metal sheet zincalum, synthetic grass, pend.

Raw text data extracted from CAD file:

\A1;Detalle Cubierta Metálica + Pasto Sintético \H0.600000x;(No es transitable / Terminación: plancha metálica a la vista o pasto síntetico) Detalle Cubierta Losa Tradicional \A1;Detalle Cubierta Losa Aislada (doble impermeabilización) \H0.600024x; Canaleta hormigón, pendiente 1% Hormigón liviano s/cálculo, pendiente 2% Regilla galvanizada Membrana Asfáltica 1,5mm Poliestireno expandido 100mm Placa soportante Membrana Asfáltica 1,5mm Grava Forro de hojalata galvanizada 0,5mm Forro de hojalata galvanizada 0,5mm Canaleta hormigón, pendiente 1% Hormigón liviano s/cálculo, pendiente 2% Regilla galvanizada Membrana Asfáltica 1,5mm Grava Forro de hojalata galvanizada 0,5mm Forro de hojalata galvanizada 0,5mm Canaleta hojalata galvanizada, pendiente 1% Regilla galvanizada Cercha metálica Metalcon s/ cálculo pendiente 5% Perfil metálico costanera Forro de hojalata galvanizada 0,5mm Placa Osb estructural 15mm Barrera de humedad fieltro Tydek Forro de hojalata galvanizada 0,5mm Aislación lana mineral Plancha metálica acanalada 5V Zincalum Pasto sintético 2% pend. 2% pend. 5% pend.

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, concrete, cover, dach, DETAIL, DWG, flat, hangar, lagerschuppen, roof, shed, slab, solutions, structure, terrasse, toit, types
