Construction Details Gas Facility DWG Detail for AutoCAD

Construction Details Gas Facility DWG Detail for AutoCAD

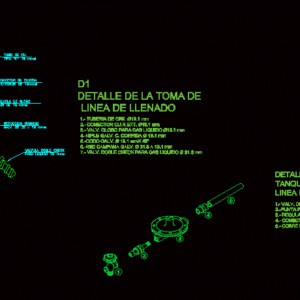

The file contains drawings that describe exactly how the process of installing the accessories for our gas installation is executed; from the stationary tank; filling up our line .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cu. Mmd type, Outer rope connector, Mmd globe valve cms, Reduction bushing galv. From mmd, Double check valve for liquid mmd, Nipple galvanized rope run of mmd, Elbow galvanized, Detail of the line filling line, Crk pipe mm cu.r.ext connector. Mm valv. Globe for liquid gas mm galv. C. Running mm galv. Mmx galv. Mm valv. Double check for liquid gas mm, Detail of stationary tank connection service line, Valv. Service for stationary tank pool low pressure regulator cu. R. Hard copper type

Raw text data extracted from CAD file:

TUBO DE CU. TIPO "K" 19 mmd CONECTOR DE CUERDA EXTERIOR DE 19mmd VALVULA DE GLOBO CMS DE 19 mmd REDUCCION BUSHING GALV. DE 32 x 19 mmd VALVULA DOBLE CHECK PARA LIQUIDO 32 mmd NIPLE GALVANIZADO CUERDA CORRIDA DE 19 mmd CODO GALVANIZADO DE 32 x 45 GRADOS D1 DETALLE DE LA TOMA DE LINEA DE LLENADO 1.- TUBERIA DE CRK d19.1 mm 2.- CONECTOR CU.R.EXT. d19.1 mm 3.- VALV. GLOBO PARA GAS LIQUIDO d19.1 mm 4.-NIPLE GALV. C. CORRIDA d 19.1 mm 5.-CODO GALV. d 19.1 mmX 45° 6.-RED CAMPANA GALV. d 31.8 A 19.1 mm 7.- VALV. DOBLE CHECK PARA GAS LIQUIDO d 31.8 mm DETALLE DE CONEXION DE TANQUE ESTACIONARIO A LINEA DE SERVICIO \A1;1.- VALV. DE SERVICIO PARA TANQUE ESTACIONARIO 2.-PUNTA POOL 3.- REGULADOR DE BAJA PRESION 4.- CONECTOR CU. R. EXT/d 1 1/4" 5.- COBRE RIGIDO TIPO L d1 1/4 " 5 4 3 2 1

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Pool
Tags	accessories, autocad, construction, describe, DETAIL, details, drawings, DWG, einrichtungen, executed, facilities, facility, file, gas, gesundheit, installation, installing, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, process, provision, wasser bestimmung, water
