Constructive Detail DWG Detail for AutoCAD

Constructive Detail DWG Detail for AutoCAD

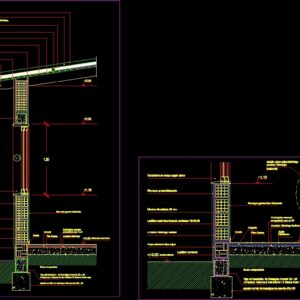

Constructive detail; roof ; masonry and foundations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

galvanized iron wavy plates, nails, Elliotis pine block molding the brushed view, hydrophobic ash: micron polyethylene film, Brushed pinewood elliotis pine, Thermal insulation: expanded polystyrene sp. dense, anchorage of the cabio to the wall with sweet hiero, They work of glass esp. density, beam of chained perimeter, sup armor, Carpentry of sheet metal according to the flat, thick coated fence, insulating layer drawer type, porous hollow ceramic bricks, whirlwind whipped, seat mortar mm., reinforced concrete foundation beam, plaster bulin, whipped hydrophobic, plastered, contrapiso cascote, thick coated fence, plate cover with slope of the, wooden corner, Running shoe of cascode concrete, Irons mm lower iron mm sup, compacted soil, outer level, folder, floor ceram, floor level finished, zocalo, Carpentry of sheet metal according to the flat, thick coated fence, insulating layer drawer type, porous hollow ceramic bricks, vertical hydrofoil whipping, seat mortar mm., reinforced concrete foundation beam, horizontal hidrofugo whipping, plastered, contrapiso cascote, brotherly revolver, Running shoe of cascode concrete, Irons mm lower iron mm sup, compacted soil, outer level, folder, floor ceram, floor level finished, zocalo, detail hydrophobic drawer union, whipped hydrophobic, constructive detail, type foundations, together, dilation, common bricks, horizontal, work:, project .:, Dib .:, date:, esc .:, constructive detail, plane:, i.v.b.a.

Raw text data extracted from CAD file:

\A1;1.20 Chapas onduladas de hierro galvanizado n°24 Clavaderas 11/2" "x2" Machimbre de pino elliotis a la vista 1/2"x4" cepillado Aslación hidrófuga: film de polietileno de 150 micrones Cabio de pino elliotis cepillado 2"x 6" Aislación térmica: poliestireno expandido 30mm esp. 20kg/m³ dens. Anclaje del cabio al muro con hiero dulce Ø 6 o lanan de vidrio 35mm esp. y 18 kg/m³ densidad V1 Viga de encadenado perimetral 18x20 armadura 3 d 8 infer./ 2 Ø 6 sup. Carpinteria de chapa segun plano Revoque grueso fratazado Capa aisladora tipo cajon Ladrillos ceramicos huecos portantes 18x18x33 Azotado hidrófugo Mortero de asiento 20 mm. Viga de fundacion de Hormigon Armado 20 x 25 Bulin de yesero 1.20 ±0.00 ±0.00 ±0.00 ±0.00 Azotado hidrofugo empastado esp.:0.12 Contrapiso cascote Revoque grueso fratazado ±0.00 Cubierta de chapa con pendiente del 15% Cenefa de madera 1" x 6" zapata corrida de hormigon de cascote 30 x 30 Armadura; 4 hierros 8 mm inferior / 2 hierros 6 mm sup. Suelo compactado nivel exterior Carpeta Piso Ceram. nivel piso terminado Zocalo Carpinteria de chapa segun plano Revoque grueso fratazado Capa aisladora tipo cajon Ladrillos ceramicos huecos portantes 18x18x33 Azotado hidrófugo vertical Mortero de asiento 20 mm. Viga de fundacion de Hormigon Armado 20 x 25 ±0.00 ±0.00 Azotado hidrofugo horizontal empastado esp.:0.12 Contrapiso cascote Revoque grueso/fino fratazado ±0.00 zapata corrida de hormigon de cascote 30 x 30 Armadura; 4 hierros 8 mm inferior / 2 hierros 6 mm sup. Suelo compactado nivel exterior Carpeta Piso Ceram. nivel piso terminado Zocalo detalle union cajon hidrofugo azotado hidrofugo DETALLE CONSTRUCCTIVO CIMIENTOS TIPO Junta Dilatacion Ladrillos comunes horizontal OBRA: OBRA: PROY.: DIB.: FECHA: 09/04 ESC.: 1:10 DETALLE CONSTRUCTIVO PLANO: I.V.B.A. PF 4

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Masonry, Wood, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details section, constructive, constructive details, cut construction details, DETAIL, DWG, FOUNDATION, foundations, masonry, roof
