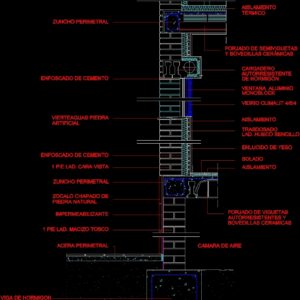

Constructive section at hole of facade family house one plant -Brick facade – Carpentry monoblock in aluminum – Slate roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Constructive section E., Concrete, Concrete beam, Little pie Rough massif, Air chamber, Forged beams, Self-resistant, Ceramic swabs, Isolation, Plaster plaster, Trasdosado, Perimeter zuncho, Natural stone, Socle plated of, Waterproofing, Perimeter sidewalk, Sunbed, Aluminum window, Double glazing, Monoblock, Isolation, Loader, Self-resistant, Isolation, Pour you stone, Artificial, Little pie Face view, Cement plastering, Perimeter zuncho, Little dog, Boy Single hollow, Slate covering, Of cleaning, Cement plastering, Of concrete, Forged semi-breaks, Ceramic swabs, Thermal

Raw text data extracted from CAD file:

SECCIÓN CONSTRUCTIVA. E. 1:25 HORMIGON VIGA DE HORMIGON 1 PIE LAD. MACIZO TOSCO CAMARA DE AIRE FORJADO DE VIGUETAS AUTORRESISTENTES Y BOVEDILLAS CERAMICAS AISLAMIENTO ENLUCIDO DE YESO TRASDOSADO ZUNCHO PERIMETRAL PIEDRA NATURAL ZOCALO CHAPADO DE IMPERMEABILIZANTE ACERA PERIMETRAL SOLADO VENTANA ALUMINIO VIDRIO CLIMALIT 4/6/4 MONOBLOCK AISLAMIENTO CARGADERO AUTORRESISTENTE AISLAMIENTO VIERTEAGUAS PIEDRA ARTIFICIAL 1 PIE LAD. CARA VISTA ENFOSCADO DE CEMENTO ZUNCHO PERIMETRAL CANECILLO LAD. HUECO SENCILLO CUBRICIÓN DE PIZARRA HA - 25 / B / 20 / I DE LIMPIEZA ENFOSCADO DE CEMENTO DE HORMIGÓN FORJADO DE SEMIVIGUETAS Y BOVEDILLAS CERÁMICAS TÉRMICO
