Containment Wall DWG Detail for AutoCAD

Containment Wall DWG Detail for AutoCAD

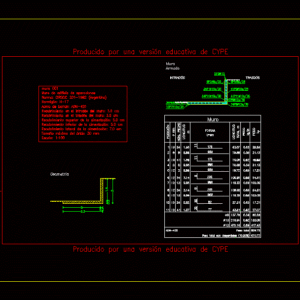

Details retaining wall of Br in dwg

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

produced by an educational version of cype, Wall, wall of building of operations, standard: cirsoc, concrete:, bar steel:, coating on the intrados of the wall: cm, coating on the back of the wall: cm, top foundations: cm, foundation underlayment: cm, lateral coating of foundation: cm, maximum aggregate size: mm, scale:, geometry, intrados, behind, Wall, armed, Wall, position, num. pieces, length, shape, length, total, weight, weight, total weight, total weight with waste

Raw text data extracted from CAD file:

Producido por una versión educativa de CYPE Producido por una versión educativa de CYPE Producido por una versión educativa de CYPE Producido por una versión educativa de CYPE muro 001 Muro de edificio de operaciones Norma: CIRSOC 201-1982 (Argentina) Hormigón: H-17 Acero de barras: ADN-420 Recubrimiento en el intradós del muro: 3.0 cm Recubrimiento en el trasdós del muro: 3.0 cm Recubrimiento superior de la cimentación: 5.0 cm Recubrimiento inferior de la cimentación: 5.0 cm Recubrimiento lateral de la cimentación: 7.0 cm Tamaño máximo del árido: 30 mm Escala: 1:100 3 0.2 3.2 0.2 1.8 2 Geometría INTRADÓS TRASDÓS 2P5d12 34P1d10c/30 41P3d10c/25 34P10d10c/30 41P11d10c/25 8P2d8c/25 8P4d8c/25 12P9d12c/30 34P8d12c/30 12P7d12c/30 34P6d12c/30 Muro Armado Muro POSICIÓN d mm NÚM. PIEZAS LONGITUD m FORMA L=cm LONGITUD TOTAL m PESO kg/m PESO kp 1 10 34 1.86 175 11 63.07 0.62 38.89 2 8 8 9.86 986 78.88 0.39 31.13 3 10 41 1.86 175 11 76.06 0.62 46.89 4 8 8 9.86 986 78.88 0.39 31.13 5 12 2 9.86 986 19.72 0.89 17.51 6 12 34 3.14 305 9 106.90 0.89 94.91 7 12 12 9.86 986 118.32 0.89 105.05 8 12 34 3.14 305 9 106.90 0.89 94.91 9 12 12 9.86 986 118.32 0.89 105.05 10 10 34 0.82 52 30 27.91 0.62 17.21 11 10 41 1.07 77 30 43.91 0.62 27.07 d8 157.76 0.39 62.26 d10 210.94 0.62 130.06 d12 470.16 0.89 417.43 ADN-420 Peso total 609.75 Peso total con desperdicios (10.00%) 670.73

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, béton armé, concrete, containment, DETAIL, details, DWG, formwork, reinforced concrete, retaining, schalung, stahlbeton, wall, wall containment
