Contention Wall DWG Detail for AutoCAD

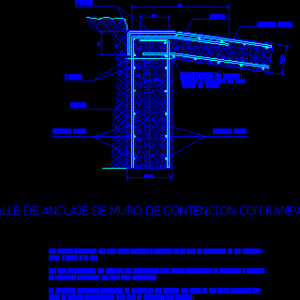

Detail anchorage wall of contention with ramp

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

variable, armed wall, before straining, clean saturated with water, Earth, armed wall, rough casting joint, armed ramp, ramp, the exterior reinforcements of the wall must be bent to penetrate the compression layer in a greater length equal to cm. the crowning of the wall are very advisable to avoid cracking shrinkage reinforce the wall’s resistant mechanism as it is necessary to establish mechanisms to support the thrust of the as it is not acceptable that they rely exclusively on the compression layer of the floor., retaining wall anchor detail with ramp, variable

Raw text data extracted from CAD file:

VARIABLE VARIABLE 0.20 0.20 0.50 0.20 00.00 2 d1/2" 2 d1/2" ARMADO MURO ANTES DE COLAR LIMPIA Y SATURADA DE AGUA TIERRA ARMADO MURO JUNTA RUGOSA DE COLADO ARMADO RAMPA RAMPA 0.20 Los armados exteriores del muro deben doblarse y penetrar en la capa de compresión en una longitud mayor o igual a 50 cm. Los 4Ø16 de coronación del muro son muy aconsejables para evitar fisuraciones de retracción y reforzar el mecanismo resistente del muro como viga-pared. Es necesario establecer mecanismos de soporte de los empujes del muro, ya que no es aceptable que éstos se confíen exclusivamente a la capa de compresión del forjado. DETALLE DE ANCLAJE DE MURO DE CONTENCION CON RAMPA 0.50 0.20 0.20 VARIABLE VARIABLE

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anchorage, autocad, béton armé, concrete, contention, DETAIL, DWG, formwork, ramp, reinforced concrete, schalung, stahlbeton, wall
