Corbel DWG Detail for AutoCAD

Corbel DWG Detail for AutoCAD

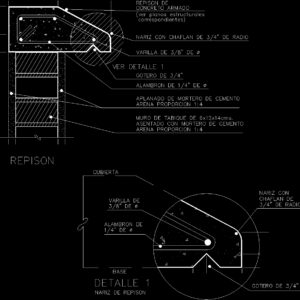

Detail concret corbel for wall in terrace

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

reinforced concrete, nose with radio chamfer, dropper, rod of, wire rod, flattening cement mortar, sand proportion, wall of partition, sand proportion, structural plans, dropper, chamfer, radio, repison of, seated with cement mortar, nose of repison, rod, wire rod, repison, detail, see detail, nose with, cover, base

Raw text data extracted from CAD file:

CONCRETO ARMADO NARIZ CON CHAFLAN DE 3/4" DE RADIO GOTERO DE 3/4" VARILLA DE 3/8" DE d ALAMBRON DE 1/4" DE d APLANADO DE MORTERO DE CEMENTO ARENA PROPORCION 1:4 MURO DE TABIQUE DE 6x12x14cms. ARENA PROPORCION 1:4 (ver planos estructurales correspondientes) GOTERO DE 3/4" CHAFLAN DE 3/4" DE RADIO REPISON DE ASENTADO CON MORTERO DE CEMENTO NARIZ DE REPISON VARILLA DE 3/8" DE d ALAMBRON DE 1/4" DE d REPISON DETALLE 1 VER DETALLE 1 NARIZ CON CUBIERTA BASE

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, concret, construction details section, cut construction details, DETAIL, DWG, terrace, wall
