Corridor Rail – Double Wall DWG Detail for AutoCAD

Corridor Rail – Double Wall DWG Detail for AutoCAD

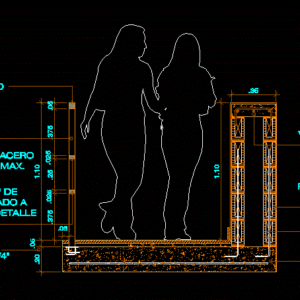

Detail corridor with double rail and wall blocks

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Block wall, Concrete beam, Of coated, Rep. smooth, Post slab, Plate of, With anchorages, Vertical steel tube galv. Of max., Galvanized steel plate. Soldier vertical detail, Tube railings galvanized steel. from

Raw text data extracted from CAD file:

1.10 .35 1.10 .05 .20 .375 .025 .25 .025 .375 .05 .05 3 #4 + #3 @ ±0.10 PARED DE BLOQUES VIGA DE CONCRETO DE 4" REVESTIDO + REP. LISO LOSA POSTENZADA #3 @0.60 1.100000000000136 0.3499999999967258 1.099999999988313 5 0.2000000000000455 0.3749999999881766 5 0.25 5 0.375 0.0499999999999545 5 PLETINA DE 4"x4"x1/4" CON ANCLAJES #3 TUBO VERTICAL DE ACERO GALV. DE 2" @ 1.10 MAX. PLATINA DE 2" x 3/8" DE ACERO GAL. SOLDADO A VERTICALES (VER DETALLE DB-1) TUBO PASAMANOS CORRIDO DE ACERO GALV. DE 2"

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block wall, blocks, corridor, degrau, DETAIL, double, DWG, échelle, escada, escalier, étape, ladder, leiter, rail, staircase, stairway, step, stufen, treppe, treppen, wall
