Counter DWG Detail for AutoCAD

Counter DWG Detail for AutoCAD

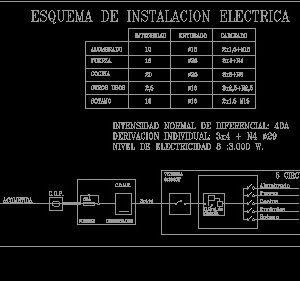

Scheme of electric installation – Detail of control square

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

picture detail, command protection, pia, differential, in:, pia, pia, pia, electrical installation scheme, washing machine, Hot water, electrical installation scheme, living place, electricity level w., individual derivation:, Normal intensity of differential:, intensity, lighting, force, eat., c.o.p., rush, kitchen, other uses, basement, fuse, switch, power suppliers, cabling, cased, distrib., c.gral.de, force, lighting, circuits, plugs, kitchen, basement, lighting, i.c.p., accountant, Earth, network of, living place, kitchen, general picture of, distribuvion in

Raw text data extracted from CAD file:

DETALLE DE CUADRO DE MANDO Y PROTECCION I (10A-16A) PIA 50Hz 220v I n: 0.03A DIFERENCIAL 220v 0 1 In: 40A 50Hz I (10A-16A) PIA 50Hz 220v I I (20A) PIA 50Hz 220v (25A) PIA 220v 50Hz ESQUEMA DE INSTALACION ELECTRICA 40 A-30mA 10 A 16 A 20 A 25 A Lavadora 2x4mm2 Agua caliente 1,5mm2 ESQUEMA DE INSTALACION ELECTRICA 8:3000W VIVIENDA NIVEL DE ELECTRICIDAD 8 :3.000 W. DERIVACION INDIVIDUAL: 3x4 + N4 d29 INTENSIDAD NORMAL DE DIFERENCIAL: 40A INTENSIDAD 16 10 ALUMBRADO FUERZA 3x4+4 16 2,5 20 C.O.M.E. C.O.P. 63A ACOMETIDA COCINA OTROS USOS SOTANO FUSIBLE CONMUTADOR I I 50Hz I C P 220v 2s2,5mm2 Tomas de corriente 2x15mm2 2x6 a 2x16mm2 1,5mm2 2,5mm2 2,5mm2 3x4+N4 2x1,5+N15 CABLEADO d25 d16 ENTUBADO 2x1,5 N15 3x2,5+N2,5 3x6+N6 distrib. C.Gral.de d16 d16 d25 Fuerza Alumbrado 5 CIRCUITOS Enchufes Cocina Sotano Alumbrado I.C.P. Contador tierra red de 6mm2 2x6mm2 vivienda 4mm2 cocina Cuadro general de distribuvion en

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, control, counter, DETAIL, DWG, einrichtungen, electric, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, SCHEME, square, wasser bestimmung, water
