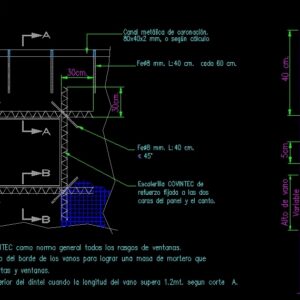

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

variable, high of no use, cm., faith lintel reinforcement, mt., burn the min cm., cut, fill with mortar., note: coat both sides of the, fe cm. every cm., polystyrene removed., faith channel, cut, ladder, reinforcement in covintec windows, receives the dowels from the window frames., reinforce with iron the lower edge of the lintel when the length of the span exceeds according to cut a., min. cm. the polystyrene of the edge of the bays to achieve a mass of mortar that, reinforce with covintec ladder armor as a general rule all window features., ladder covintec de, the song of the vain., reinforcement for everything, according to calculation, metal coronation channel., mm. cm., panel faces the corner., reinforcement fixed both, ladder covintec de, mm. cm. every cm.

Raw text data extracted from CAD file:

5cm. -3.944999132295834 Variable Alto de vano 40 cm. 2 Fe d8 refuerzo dintel largo superior a 1,2 Mt. panel, despues; quemar el poliestireno, min 5 cm. CORTE B-B y llenar con mortero. NOTA: Estucar ambas caras del Fe d8. L=40 cm. cada 60 cm. Poliestireno removido. Canal de Fe 80x40x2 CORTE A-A Escalerilla \A1; REFUERZO EN VENTANAS - COVINTEC recibe los tarugos de los marcos de puertas y ventanas. * Reforzar con fierro adicional, el borde inferior del dintel cuando la longitud del vano supera 1.2mt. segun corte A. * Se debe rebajar min. 5 cm. el poliestireno del borde de los vanos para lograr una masa de mortero que * Reforzar con armadura o escalerilla COVINTEC como norma general todos los rasgos de ventanas. Escalerilla COVINTEC de el canto del vano. refuerzo por todo -1190.367653167367 -1190.367653167367 A < 45° A B B 80x40x2 mm, o según cálculo Canal metálica de coronación. Fed8 mm. L:40 cm. caras del panel y el canto. refuerzo fijada a las dos Escalerilla COVINTEC de Fed8 mm. L:40 cm. cada 60 cm. \A1;30cm. \A1;30cm.
