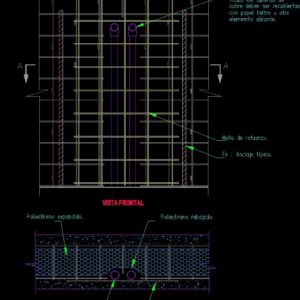

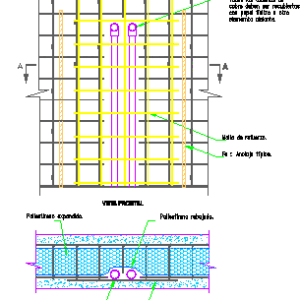

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

reconstitute the cut mesh by placing, a mesh with minimum overlap of a grid., Reinforcement mesh:, reduced polystyrene., to isolate the plumbing, copper that remain in contact with the mesh., cut, front view, expanded polystyrene., with felt paper other, reinforcing mesh., copper must be coated, all the pipelines, faith typical anchorage., important:, insulation element., gas water installation covintec

Raw text data extracted from CAD file:

Reconstituir la malla cortada colocando una malla con traslape mínimo de una cuadricula. Malla de refuerzo: Poliestireno rebajado. Aislar con papel fieltro las cañerias de cobre que queden en contacto con la malla. CORTE A-A A VISTA FRONTAL Poliestireno expandido. con papel fieltro u otro Malla de refuerzo. cobre deben ser recubiertas Todas las tuberias de A Fe : Anclaje típico. IMPORTANTE: elememto aislante. INSTALACION DE AGUA Y/O GAS - COVINTEC
