Curtain Wall 1:25 DWG Section for AutoCAD

Curtain Wall 1:25 DWG Section for AutoCAD

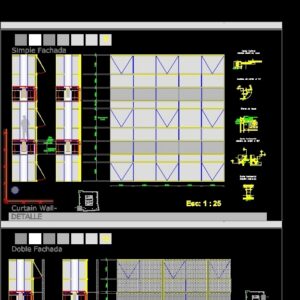

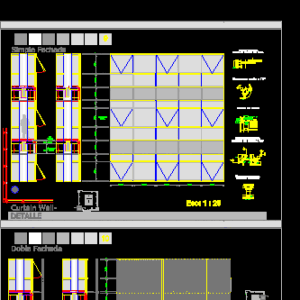

Construction details – – simple glass only and double glazed with metal mesh – – curtain walls. Views and sections of the constituent pieces. S.cale 1:25

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

closing of slabs long, support, sheet, crossbeam, weatherstrip, weatherstrip, closing of slabs short, dvh, profile, structural dvh, technical floor, slab, technical ceiling, enclosure dvh, vertical section detail slab closing, closing of slabs, silicone sealant, horizontal cut column detail, separator, silicone, structural silicone, curtain wall- detail, simple facade, double facade

Raw text data extracted from CAD file:

CONJUNTO 90 Cierre de losas largo Soporte Hoja Travesaño Burlete U Burlete Cierre de losas corto Soporte Burlete p/Travesaño DVH Perfil DVH Estructural Perfil 0.07m 1.00m 0.07m 1.70m 0.07m 0.50m 0.07m 1,40m 1.70m 1.70m 1.70m 1.70m 1.00m 1.00m 0.50m 1,40m 0.07m 0.07m 1.00m 1,40m 1,40m 0,14m 0,20m 0,66m Piso técnico Losa Cielorraso técnico Cerramiento D.V.H. 0.07m 1.00m 0.15m 1.70m 0.07m 0.50m 0.07m 1,40m 1.70m 1.70m 1.70m 1.70m 1.00m 1.00m 0.50m 0.07m 0.07m 1.00m 1,40m 1,40m Cerramiento D.V.H. 0.15m 0.15m 0.15m Corte Vertical Detalle Cierre De Losa Detalle de unión a 72º Cierre de losas Silicona Sellador DVH Perfil Perfil DVH Estructural Silicona Sellador Perfil Corte horizontal detalle de unión a 90º Corte horizontal detalle columna Separador Silic Silicona Estructural Perfil Perfil Esc: 1 : 25 9 Curtain Wall- DETALLE Simple Fachada Esc: 1 : 25 10 Curtain Wall- DETALLE Doble Fachada

Language	Spanish
Drawing Type	Section
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Glass, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, construction, curtain, details, double, DWG, glass, glazed, mesh, metal, section, Simple, wall, walls
