Curtain Wall Detail DWG Plan for AutoCAD

Curtain Wall Detail DWG Plan for AutoCAD

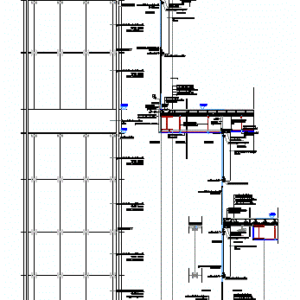

Sections in plan and elevation of the structure of a curtain wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Romanian):

metallic profile t, waterproofing canvas bitumen, vapor barrier and high density extruded polyethylene diffusion layer, equalizing layer, slope concrete, sheet metal, protective layer – margarita gravel, plaster on fiber glass net, diffusion layer, decompression and compensation – high density extruded polyethylene, expanded polystyrene thermal insulation, gypsum plasterboard ceiling, suspended ceiling system, rigola, flexible epdm membrane, spider grip system, underfloor heating convector, barbecue aluminum, neoprene gasket, anticorrosive protective metal frame, silicone putty, glass lamella clamping system, concrete filling, exterior, interior, kraft paper, natural soil, column, metal profile, structural lamellar glass, self- , white granite glaze, white decorative plaster

Raw text data extracted from CAD file:

25 73,4 +10,00 +8,90 +15,00 +16,90 +5,00 +10,00 \A1;25 5 profil metalic T 10-16-6 mm hidroizolatie panza bitumata bariera contra vaporilor si strat de difuzie polietilena extrudata de inalta densitate strat de egalizare beton de panta sort de tabla strat de protectie - pietris margaritar polistiren extrudat - 50 mm tencuiala pe suport din plasa de fibra de sticla strat de difuzie, decompresiune si compensare - polietilena extrudata de inalta densitate termoizolatie din polistiren expandat plafon suspendat gips-carton sistem montare plafon suspendat plafon suspendat gips-carton pardoseala din lemn natural Parklex 2000 1.0 % 1.0 % polistiren extrudat 3cm beton panta min.3cm hidroizolatie panza bitumata suport din baghete 30mm pardoseala din lamele lemn masiv - 19mm placa beton armat 15 cm element de rigola vata minerala 10 cm suport din baghete 30mm placa beton armat 15 cm pardoseala din lemn natural Parklex 2000 vata minerala 10 cm suport din baghete 30mm placa beton armat 15 cm polistiren extrudat - 50 mm tencuiala pe suport din plasa de fibra de sticla polistiren expandat 5 cm sistem montare plafon suspendat plafon suspendat gips-carton sistem montare plafon suspendat geam dublu laminat+Low E geam dublu laminat+Low E profil metalic T profil metalic T 10-16-6 mm geam dublu laminat+Low E membrana flexibila EPDM sistem de prindere spider sistem de prindere spider convector de incalzire in pardoseala gratar aluminiu garnitura neopren cadru metalic protejat anticoroziv chit silicon sistem de prindere spider sistem de prindere lamela sticla membrana flexibila EPDM garnitura neopren cadru metalic protejat anticoroziv chit silicon completare beton EXTERIOR INTERIOR INTERIOR EXTERIOR EXTERIOR INTERIOR EXTERIOR INTERIOR hartie Kraft polistiren extrudat 5 cm strat de rupere a capilaritatii, pietris 10 cm pamant natural convector de incalzire in pardoseala gratar aluminiu convector de incalzire in pardoseala gratar aluminiu stalp profil metalic lamela structurala de sticla 12 mm profil metalic T sistem de prindere spider hidroizolatie autoprotejata granule de ardezie element de prindere montat din 60 in 60 cm profil C glaf granit alb profil metalic T profil metalic T tencuiala decorativa alba profil metalic profil metalic 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm 10-16-6 mm geam dublu laminat+Low E 1200 x 2400 mm tencuiala decorativa alba 10-16-6 mm EXTERIOR EXTERIOR sistem de prindere spider sistem de prindere lamela sticla lamela structurala de sticla 12 mm sistem de prindere spider sistem de prindere lamela sticla lamela structurala de sticla 12 mm pardoseala din lemn natural Parklex 2000 vata minerala 10 cm suport din baghete 30mm placa beton armat 15 cm 10-16-6 mm geam dublu laminat+Low E lamela structurala 12 mm 10-16-6 mm geam dublu laminat+Low E EXTERIOR INTERIOR 1 2 3 0 m sistem de prindere spider 1 2

Language	Other
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park
Tags	autocad, Construction detail, curtain, curtain wall, DETAIL, DWG, elevation, plan, sections, structure, wall
