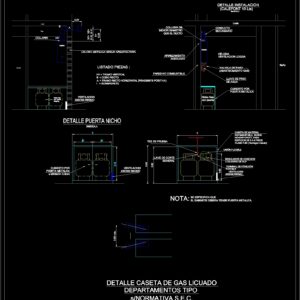

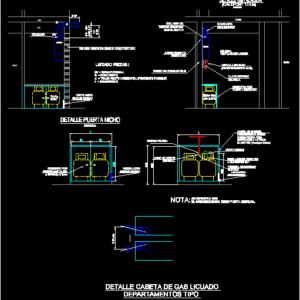

Detail cylinder stand glp 15 kg

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Detail liquefied gas booth, Type departments, Flexible union, beam, slab, kitchen, Water heater, Niche gas with door, bath, slab, Lattice, Ventilation loggia, General cut wrench, Test tee, Regulator of connection glp cylinder, Flexible connection terminal, S.e.c., Proper bonding, Non-combustible wall, Collar of smaller diameter than the duct, Step valve, water passage key, Secondary conduit, Installation detail, House of fireproof material according to concrete-class apartment buildings, note:, It is specified that the cabinet must have a metal door., Covered by metal door, Metal lattice according to architecture, Hv vertical section straight elbow straight horizontal section cap, Parts listing, Water heater, collar, Niche gas with metal door, Covered by metal door, Niche door detail, ventilation, minimum, ventilation, minimum, ventilation, minimum, Min.

Raw text data extracted from CAD file:

DETALLE CASETA DE GAS LICUADO DEPARTAMENTOS TIPO \A1;X UNION FLEXIBLE Viga Losa Cocina Calefon Nicho Gas con puerta Baño Losa CELOSIA VENTILACION LOGGIA LLAVE DE CORTE GENERAL TEE DE PRUEBA REGULADOR DE CONEXION A CILINDRO DE GLP TERMINAL DE CONEXION FLEXIBLE SIN/ESCALA s/NORMATIVA S.E.C. AFIANZAMIENTO ADECUADO PARED NO COMBUSTIBLE COLLARIN DE MENOR DIAMETRO QUE EL DUCTO VALVULA DE PASO (ABASTECIMIENTO GAS) LLAVE DE PASO DE AGUA CONDUCTO SECUNDARIO (CALEFONT 10 Lts) DETALLE INSTALACION CASETA DE MATERIAL INCOMBUSTIBLE SEGUN NCh935/1Of1977, PARA EDIFICIOS DE 5 A 6 PISOS CLASE F-90 ( Hormigon Celular) NOTA: SE ESPECIFICA QUE EL GABINETE DEBERA TENER PUERTA METALICA. SIN/ESCALA CUBIERTO POR PUERTA METALICA CELOSIA METALICA SEGUN ARQUITECTURA HV = TRAMO VERTICAL B = CODO RECTO A = TRAMO RECTO HORIZONTAL (PENDIENTE POSITIVA) I = SOMBRERETE LISTADO PIEZAS : Calefon HV COLLARIN B A Nicho Gas con puerta Metalica CUBIERTO POR PUERTA METALICA e MINIMO= 0.8mm SIN/ESCALA DETALLE PUERTA NICHO X \A1;\S1/2;X VENTILACION 400CM2 MINIMO VENTILACION 400CM2 MINIMO VENTILACION 400CM2 MINIMO \A1;\S1/2;X \A1;0.82 \A1;0.85 \A1;0.75 \A1;0.60 h= 0.33 h2= 0.11 h1= 0.22 0.27 0.60 min.

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
