Detail Flat Roof DWG Detail for AutoCAD

Detail Flat Roof DWG Detail for AutoCAD

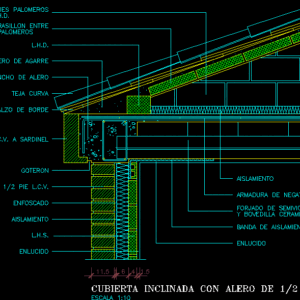

Sloping cover with eaves half a foot

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

goteron, foot l.c.v., plaster, l.h.s., plastered, isolation, scale, sloping roof with foot eave, isolation, negative armor, insulation band, plaster, Ceramic vault, forged half-jointed, curved tile, edge wedge, gripping mortar, l.h.d., partition walls, of l.h.d., palomeros, rasillon between, eave zuncho, l.c.v. sardinel

Raw text data extracted from CAD file:

11.5 4 6 1.5 GOTERON 1/2 PIE L.C.V. ENLUCIDO L.H.S. ENFOSCADO AISLAMIENTO 1.5 1 6 4 ESCALA 1:10 CUBIERTA INCLINADA CON ALERO DE 1/2 PIE 5 AISLAMIENTO ARMADURA DE NEGATIVOS BANDA DE AISLAMIENTO ENLUCIDO Y BOVEDILLA CERAMICA FORJADO DE SEMIVIGUETA TEJA CURVA CALZO DE BORDE MORTERO DE AGARRE L.H.D. TABIQUES PALOMEROS DE L.H.D. PALOMEROS RASILLON ENTRE ZUNCHO DE ALERO L.C.V. A SARDINEL

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, DWG, eaves, flat, foot, hangar, lagerschuppen, roof, shed, sloping, structure, terrasse, toit
