Detail / Ground DWG Detail for AutoCAD

Detail / Ground DWG Detail for AutoCAD

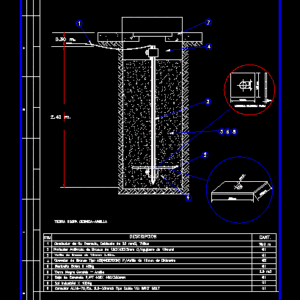

GROUNG ROD WITH SPREADER

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Bentonite bag, Concrete box, Wiring conductor, Brass type connector of diameter, Spilled bolt type double connector, Bronze rod, Cant, description, item, design:, date:, drawing:, Revision no., Approve, date, Esc:, Sheet number:, supervisor:, Type: pat, Grounding with spreader rod, Industrial salt, Black earth, Anti-theft, Mm., Flat square washer, Black clay sifted earth, September

Raw text data extracted from CAD file:

\A1;hmin=5.50m -117.5018883437461 \A1;0.80 m. 400mm 150mm 9 7 6 5 4 8 3.5 m3 Bentonita Bolsa X 48Kg 18.0 m Caja de Concreto P/PT 400X 400X350mm Conductor de Cu Desnudo, Cableado de 25 mm2, 7Hilos \A1;2.40 m. 0.80 m. 0.30 m. Conector de Bronce Tipo AB(ANDERSON) P/Varilla de 19mm de Diámetro Conector AL16-70/Cu. 2.5-35mm2 Tipo Doble Vía SPILT BOLT Varilla de Bronce de 19mmx 2.40m. 2 7 3 4 1 CANT. DESCRIPCION ITEM 3 0 1 3 4 5 DISEÑO: FECHA: DIBUJO: REVISION Nº APROB. V°B° FECHA ESC: LAMINA Nº: SUPERVISOR: S/E TIPO: PAT PUESTA A TIERRA CON VARILLA DISPERSORA 02 Sal Industrial X 100Kg TIERRA NEGRA CERNIDA-ARCILLA 2 1 Protector Antirrobo de Bronce de 150X400X3mm C/Agujaero de 19mmd 4 5 19 mm 150 mm. 150mm. ARANDELA CUADRADA PLANA \A1;6mm 400mm 150mm 19mm 01 01 01 Tierra Negra Cernida - Arcilla 01 01 01 6 8 SETIEMBRE 2011

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, ground, grounding, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, rod, wasser bestimmung, water
