Detail Installations DWG Detail for AutoCAD

Detail Installations DWG Detail for AutoCAD

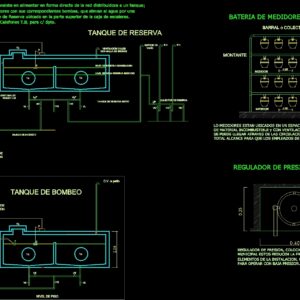

DETAIL RESERVOIR TANK FOR CONSORTIUM;DOWNLOADS;SMALL DESCRIPTION. DETAIL GAS METERS AND NICHES WITH REGLAMENTARY MEASURES FOR CONSORTIUM

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Bid, Regulator of placed on the municipal line these reduce the pressure of consumption of the elements of which they are designed to operate with low pressure., upright, measurer, Barral collector, measurer, The gauges are located in a space in a closet with doors of fireproof material with vents in the upper part inferior. Can be reached through the common circulations of the building are at full reach so that employees can carry out the control., Meter battery, pressure regulator, Llp, you., you., Ventilation with bronze mesh, Llp, you., you., you., you., Ll.p., Mixed tank, Vacuum switch, Reserve collector, R.v., Lowering of fire, Water level reserve fire, Household reservation level, Reserve tank, Pumping tank, Slope min. background, Floor level, Electricity board, centrifugal pump, Driving pipe, C.v. yard, Driving pipe, Pumping detail: consists of feeding directly from the distributor network a lane for the pumping using engines with their corresponding that raise the water by a conduit to the reserve tank located at the top of the stairwell. Provision of water mediane calefones for dpto.

Raw text data extracted from CAD file:

BID 0.40 0.25 REGULADOR DE PRESION, COLOCADOS SOBRE LA LINEA MUNICIPAL ESTOS REDUCEN LA PRESION DE CONSUMO DE LOS ELEMENTOS DE LA INSTALACION, QUE ESTAN DISEÑADOS PARA OPERAR CON BAJA PRESION. 0.55 0.385 0.55 MONTANTE MEDIDOR BARRAL o COLECTOR MEDIDOR 0.385 LO MEDIDORES ESTAN UBICADOS EN UN ESPACIO ABIERTO, EN UN ARMARIO CON PUERTAS DE MATERIAL INCOMBUSTIBLE y CON VENTILACIONES EN LA PARTE SUPERIOR E INFERIOR. SE PUEDE LLEGAR ATRAVES DE LAS CIRCULACIONES COMUNES DEL EDIFICIO Y ESTAN AL TOTAL ALCANCE PARA QUE LOS EMPLEADOS DE EPEC, PUEDAN REALIZAR EL CONTROL. BATERIA DE MEDIDORES REGULADOR DE PRESION VL LLP VE VE T.I. A F T.I. VENTILACIÓN O 0,025 CON MALLA DE BRONCE VL LLP VE T.I. VE VE VE T.I. A F T.I. VE VE T.I. F LL.P. TANQUE DE RESERVA MIXTO RUPTOR DE VACIO VE VE VE UP COLECTOR DE RESERVA R.V. R.V. BAJADA DE INCENDIO NIVEL DE AGUA RESERVA INCENDIO NIVEL DE RESERVA DOMICILIARIO 2.00 TANQUE DE RESERVA TANQUE DE BOMBEO PENDIENTE MIN. DE FONDO 1:10 NIVEL DE PISO TABLERO DE ELECTRICIDAD BOMBA CENTRIFUGA CAÑERIA DE IMPULSION C.V. a patio CAÑERIA DE IMPULSION DETALLE DE BOMBEO: Consiste en alimentar en forma directa de la red distribuidora a un tanque; luedo para el bombeo se utilizan motores con sus correspondientes bombas, que elevan el agua por una cañeria de impulsion hasta el Tanque de Reserva ubicado en la parte superior de la caja de escaleras. Provision de agua caliente, mediane Calefones T.B, para c/ dpto.

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Deck / Patio, Car Parking Lot
Tags	autocad, description, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, installations, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, meters, niches, provision, reservoir, tank, wasser bestimmung, water
