Detail Of Steam Framing DWG Section for AutoCAD

Detail Of Steam Framing DWG Section for AutoCAD

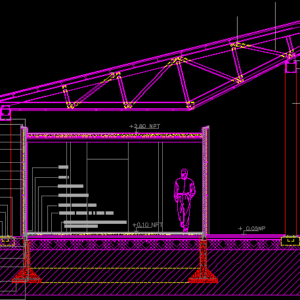

is a section showing the details of the construction system steam framing.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

npt, npt, compacted tosca filling, zapata race of hua, ceramic, glue, waterproof folder, light subfloor of poor, plinth, sidding, nail, ribbon, teyvek, outdoor phenol multilamid, upright, thermal polyest. exp, profile tube beam, lower base of the profile, profile, sealant in the joint steel concrete, bolts upright between floor panel floor joist, Beam support for bolted beam tube: Profile, sheet corrugated as formwork lost horizontal diaphragm, pedestal, anchor bolts, anchoring shaft. platen, sealant in the joint steel concrete, termination of eifs with inclination, upper profile top new, two profiles in, tube, stirrup

Raw text data extracted from CAD file:

+0.10 NPT + 0,05NP +2.80 NPT Relleno de tosca compactada zapata corrida de HºAº ceramico 0.01 m pegamento 0.005 m Carpeta hidrofuga 0.02m Contrapiso liviano de h pobre 0.6cm Zocalo sidding clavadera liston teyvek multilamidado fenolico exterior montante \A1;Aislación Térmica Poliest. Exp 2" viga de tubo de borde, perfil U Solera inferior del panel\fArial|b0|i0|c186|p34;. Perfil U perfil L sellador en la junta acero - hormigon 2 tornillos por montante entre solera panel y viga de piso viga de apoyo para el substrato, atornillada a viga tubo: perfil C chapa acanalada como encofrado perdido y diafragma horizontal pedestal pernos de anclaje o 5/8 eje de anclaje. platina sellador en la junta acero - hormigon terminacion de eifs con inclinacion Solera superior del panel\fArial|b0|i0|c186|p34;. Perfil U\fTimes New Roman|b0|i0|c186|p18; \A1;columna dos perfiles en C \A1;platina \A1;rigidizarores \A1;viga tubo estribo

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, construction, construction system, covintec, cutting, DETAIL, details, DWG, earth lightened, erde beleuchtet, framing, losacero, plywood, section, showing, sperrholz, stahlrahmen, steam, steel framing, system, système de construction, terre s
