Detail Recyclable Metal Staircase DWG Plan for AutoCAD

Detail Recyclable Metal Staircase DWG Plan for AutoCAD

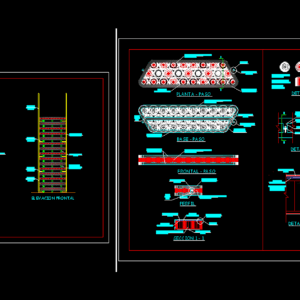

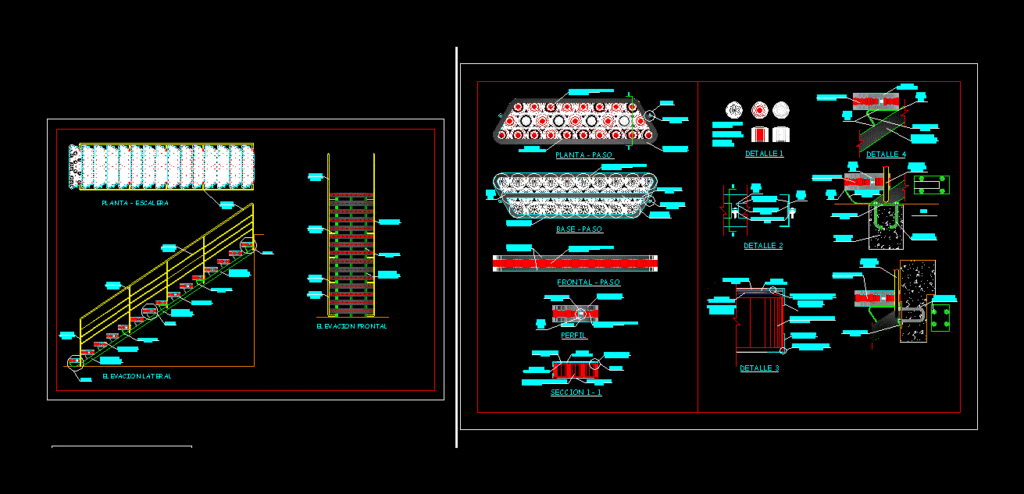

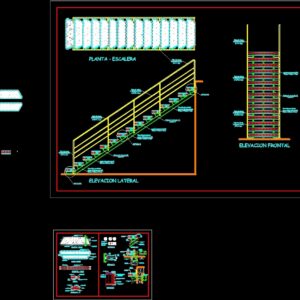

aa metal ladder base oil filters cars up plan section and elevation. / Ladder / recyclable metal staircase detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Staircase plant, Steel angle, electro-welded pipe carbon steel mm, carbon steel tube mm, steel plate, electro-welded pipe carbon steel mm, steel plate, electro-welded pipe carbon steel mm, Steel angle, carbon steel tube mm, Steel angle, electro-welded pipe carbon steel mm, steel plate, carbon steel tube mm, Plant step, front step, profile, Steel angle, steel plate, lfp mitsubishi canter oil filter, r. Mm, base step, detail, steel plate, Steel angle, lfp mitsubishi canter oil filter, steel plate, Steel angle, section, Steel angle, steel plate, lfp mitsubishi canter oil filter, Steel angle, carpet cover jadran mm, transparent smooth acrylic mm, steel plate, r. Mm, lfp mitsubishi canter oil filter, detail, lateral elevation, front elevation, oil filter lfp mitsubishi canter filter height filter diameter: white red, steel plate, Steel angle, detail, nut washer bolts, Steel angle, transparent smooth acrylic mm, carpet cover jadran mm, lfp mitsubishi canter oil filter, r. filters to reduce the impact of traffic on the, detail, material surfaces compressed with metal angle, oil filter compressed by metal angles, detail, polished masked soldier, platinum welded oil filters, electro-welded pipe carbon steel mm, polished masked soldier, steel plate, detail, transparent smooth acrylic mm, lfp mitsubishi canter oil filter, polished masked soldier, given concrete cm, galvanized anchor bolts, platen, steel plate, carbon steel tube mm, galvanized anchor bolts

Raw text data extracted from CAD file:

PLANTA - ESCALERA Angulo de Acero (LAC) \W0.75174; 25mm x 25mm x 2mm Tubo Electrosoldado Acero al Carbono (LAC) 40mm x 80mm x 2 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm Platina de Acero (LAC) \W5.16286; 3/16"x 1" Tubo Electrosoldado Acero al Carbono (LAC) 40mm x 80mm x 2 mm Platina de Acero (LAC) \W5.16286; 3/16"x 1" Tubo Electrosoldado Acero al Carbono (LAC) 40mm x 80mm x 2 mm Angulo de Acero (LAC) \W0.75174; 25mm x 25mm x 2mm \W1.49468; Tubo de Acero al Carbono (LAF) \W2.17784; Ø 3/4"x 1 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W2.44589; Ø 1/2"x 1 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm Angulo de Acero (LAC) \W0.68391; 25mm x 25mm x 2mm Tubo Electrosoldado Acero al Carbono (LAC) 40mm x 80mm x 2 mm Platina de Acero (LAC) \W5.16286; 3/16"x 1" \W1.49468; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W2.17784; Ø 3/4"x 1 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm \W1.49468; Tubo de Acero al Carbono (LAF) \W2.17784; Ø 3/4"x 1 mm PLANTA - PASO FRONTAL - PASO PERFIL Angulo de Acero (LAC) \W0.68391; 25mm x 25mm x 2mm Platina de Acero (LAC) \W9.19286; 1/8"x 3/4" Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter \W8.14561; Aros de Jebe R. 65 mm x 4mm x 4mm BASE - PASO DETALLE 2 Platina de Acero (LAC) \W5.66829; 1/8"x 1" Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter Platina de Acero (LAC) \W9.19286; 1/8"x 3/4" Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm SECCION 1 - 1 Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm Platina de Acero (LAC) \W9.19286; 1/8"x 3/4" Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter 1 1 Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm Cubre Alfombra Jadran \W5.92152; 0.08 mm \W5.60281; Acrilico liso \W5.60281; transparente 2 mm Platina de Acero (LAC) \W5.66829; 1/8"x 1" \W8.14561; Aros de Jebe R. 65 mm x 4mm x 4mm Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter DETALLE 2 DETALLE 1 ELEVACION LATERAL ELEVACION FRONTAL Filtro de Petroleo LFP - 68 Mitsubishi Canter Altura de Filtro : 0.085 m Diametro de Filtro: 0.094 m BLANCO - ROJO (colores Originales) x x Platina de Acero (LAC) \W9.19286; 1/8"x 3/4" Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm DETALLE 2 DETALLE 3 Estoboles + Arandela + Tuerca \W9.51459; 1 1/4" Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm Angulo de Acero (LAC) \W1.18391; 25mm x 25mm x2mm \W5.60281; Acrilico liso \W5.60281; transparente 2 mm Cubre Alfombra Jadran \W5.92152; 0.08 mm Filtro de Petroleo LFP - 68 (DETALLE 1) Mitsubishi Canter \W5.02150; Aros de Jebe \W1.82199; R. 65 mm x 4mm x 4mm \W6.89195; (Pegados a los filtro - para Reducir el impacto del transito en el acrilico) DETALLE 3 Superficies de Materiales Superpuestas, compresionadas con angulo metalico Filtro de Petroleo Compresionado por angulos metalicos DETALLE 4 DETALLE 5 DETALLE 4 \W0.96020; Soldado Masillado \W2.61479; pulido \W0.96020; Soldado Masillado \W2.61479; pulido \W0.96020; Soldado Masillado \W2.61479; pulido \W0.96020; Soldado Masillado \W2.61479; pulido \W1.39959; Platina Soldada a \W1.39959; Filtros de Petroleo Tubo Electrosoldado Acero al Carbono (LAC) 40mm x 80mm x 2 mm \W0.96020; Soldado Masillado \W2.61479; pulido \W0.96020; Soldado Masillado \W2.61479; pulido Platina de Acero (LAC) \W5.16286; 3/16"x 1" DETALLE 6 \W5.60281; Acrilico liso \W5.60281; transparente 2 mm Filtro de Petroleo LFP - 68 Mitsubishi Canter Filtro de Petroleo LFP - 68 Mitsubishi Canter Filtro de Petroleo LFP - 68 Mitsubishi Canter \W0.96020; Soldado Masillado \W2.61479; pulido \W0.96020; Soldado Masillado \W2.61479; pulido Dado de Concreto 0.25x0.20 cm \W1.84332; Pernos para Anclaje \W1.84332; Galvanizados 6" x 1/2" \W6.04907; Platina Platina de Acero (LAC) \W5.16286; 3/16"x 1" Platina de Acero (LAC) \W5.32952; 4" x 1/4" Platina de Acero (LAC) \W5.32952; 4" x 1/4" \W1.49471; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm \W1.49471; Tubo de Acero al Carbono (LAF) \W4.32367; Ø 1"x 1 mm \W1.84332; Pernos para Anclaje \W1.84332; Galvanizados 6" x 1/2"

Language	Spanish
Drawing Type	Plan
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	aa, autocad, base, cars, degrau, DETAIL, DWG, échelle, elevation, escada, escalier, étape, filters, ladder, leiter, metal, oil, plan, section, staircase, stairway, step, stufen, treppe, treppen
