Detail Transversal Section Mezzanine DWG Section for AutoCAD

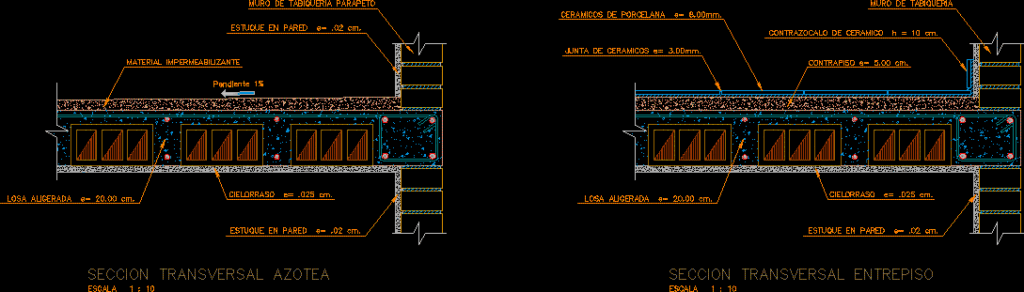

SLAB SPLITTIN iINDICATING THE DIFFERENT COMPONENTS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

note, metal door, temperature, to the center, straight bars anchor vertical in, principal, esc., cut type lightened, pvc, ceramic joint, subfloor cm., porcelain ceramics, lightweight slab cm., ceiling cm., transverse section mezzanine, scale, Ceramic countertop cm., partition wall, stucco on the wall cm., waterproofing material, lightweight slab cm., ceiling cm., cross section roof, scale, parapet wall, stucco on the wall cm., pending

Raw text data extracted from CAD file:

M NOTA NOTA \A1;2.19 2.60x2.30 Puerta de metal \A1;0,05 0.15 0.20 TEMPERATURA Ø 1/4" @ 0,25 AL CENTRO (USAR BARRAS RECTAS Y ANCLAR 0,15 VERTICAL EN EXTREMOS) \A1;0,10 \A1;0,30 (LIBRES) 0,025 \A1;0,10 Ø PRINCIPAL ESC. 1/10 CORTE TIPO DE ALIGERADO PVC Ø3/4" 5 JUNTA DE CERAMICOS e= 3.00mm. CONTRAPISO e= 5.00 cm. CERAMICOS DE PORCELANA e= 8.00mm. LOSA ALIGERADA e= 20.00 cm. CIELORRASO e= .025 cm. SECCION TRANSVERSAL ENTREPISO ESCALA 1 : 10 CONTRAZOCALO DE CERAMICO h = 10 cm. MURO DE TABIQUERIA ESTUQUE EN PARED e= .02 cm. MATERIAL IMPERMEABILIZANTE LOSA ALIGERADA e= 20.00 cm. CIELORRASO e= .025 cm. SECCION TRANSVERSAL AZOTEA ESCALA 1 : 10 MURO DE TABIQUERIA PARAPETO ESTUQUE EN PARED e= .02 cm. ESTUQUE EN PARED e= .02 cm. Pendiente 1%
