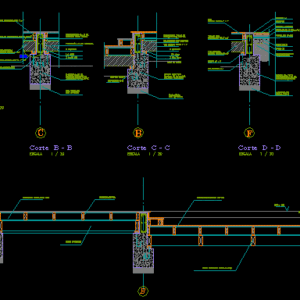

Details Constructive Floors DWG Section for AutoCAD

Details Constructive Floors DWG Section for AutoCAD

Wooden floors – Sections – Fondations –

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

exterior cladding, overlap pine ipv, easel mm., development cm., print to, cut, cut scantillon foundations, master beam, separate cm, native wood floor beam, master beam, native wood, scale, court b., cadenetas envigado de piso, ground floor, scale, master beams, asparagus mm cm., overlapping native wood, Thickness mm., galvanized iron, piece, pine oregon i.p.v, concrete, sobrecimiento cm., concrete, embossed, displacer bolon, cm foundation, Faith mm., strive mm., cover, felt, polystyrene mm., polyethylene mm., sand cm., gravel cm., fine-tuned cement cm., radier, mechanically, ground terraced, court a., scale, native wood floor beam, native wood floor, det, cut, scale, native wood piece, asparagus mm, native wood, master beam, beams dipped in creosote, Faith mm., sobrecimiento cm., kg concrete, scale, land line, asparagus mm, Faith mm., embossed, concrete, displacer bolon, cm foundation, and. mm., court b., npt, master beams each axis, cadenetas envigado de piso, npt, ground level, current ground level, fine tuned cement, portafelpa, cover, polyethylene mm., sand cm., gravel cm., radier cm., native wood, native, master beam, kg concrete, sobrecimiento cm, Faith mm., beams dipped in creosote, cm foundation, concrete, displacer bolon, embossed, mechanically, ground terraced, Faith mm., land line, cm foundation, concrete, displacer bolon, embossed, asparagus mm, native, and. mm, native wood, master beam, cut, scale, fe mm, Faith mm., native piece, and. mm, sobrecimiento cm., cut, scale, asparagus mm, embossed, cm foundation, concrete, displacer bolon, concrete, esc, architecture level level, sleep princ, architecture level level, esc, scale, floor beam, floor

Raw text data extracted from CAD file:

REVESTIMIENTO EXTERIOR TRASLAPO PINO IPV 1"x 5" CABALLETE ZINC-ALUM 0.5 MM. DESARROLLO 50 CM. Imprimir 50 a 1 para 1 : 20 Corte C - C Corte ESCANTILLON FUNDACIONES VIGA MAESTRA SEPARADA 2.5 cm VIGA DE PISO MADERA NATIVA 2" x 6" VIGA MAESTRA MADERA NATIVA 3" x 8" ESCALA 1 / 5 Corte B - B. 1 CADENETAS ENVIGADO DE PISO B ENVIGADO DE PISO ESCALA 1 / 20 VIGAS MAESTRAS ESPARRAGO o 6 MM A 0.80 CM. TRASLAPO MADERA NATIVA 1" x 6" TERCIADO 15 MM. FIERRO GALVANIZADO PIEZA 3" x 4" PINO OREGON I.P.V HORMIGON 225 kG/CM/M3. SOBRECIMIENTO 15 x 30 CM. HORMIGON 170 kG/CM/M3. EMPLANTILLADO 20% BOLON DESPLAZADOR 127.5 kG/CM/M3 CIMIENTO 40 x 60 CM. 2 Fe o 10 MM. ESTRIVO o 6 MM. FORRO 3/4" x 6" FIELTRO POLIESTIRENO 50 mm. POLIETILENO 0.4 MM. ARENA 2.5 CM. RIPIO 8 CM. AFINADO A CEMENTO 2.5 CM. RADIER 170 KG/CM/M3. 1 MECANICAMENTE TERRENO APIZONADO Corte A - A. ESCALA 1 / 20 VIGA DE PISO MADERA NATIVA 2" x 6" PISO MADERA NATIVA 1" x 4" DET 1 Corte B - B ESCALA 1 / 20 C PIEZA MADERA NATIVA 2" x 3" ESPARRAGO 6 MM MADERA NATIVA 3" x 8" VIGA MAESTRA VIGAS BAÑADAS CON CREOSOTA 2 Fe o 8 MM. SOBRECIMIENTO 15 x 40 CM. HORMIGON 225 kG /CM/M3 ESCALA 1 / 20 B LINEA DE TIERRA ESPARRAGO 6 MM 2 Fe o 10 MM. 127.5 kG/CM/M3 EMPLANTILLADO HORMIGON 170 kG/CM/M3 20% BOLON DESPLAZADOR CIMIENTO 40 x 50 CM. E. o 6 MM. Corte B - B. NPT - 0.30 7 VIGAS MAESTRAS cada 1.04 m eje CADENETAS ENVIGADO DE PISO NPT +- ( 0 ) NPT - 0.145 NIVEL TERRENO 2 NIVEL TERRENO ACTUAL AFINADO A CEMENTO PORTAFELPA CUBREPISO POLIETILENO 0.4 MM. ARENA 2.5 CM. RIPIO 8 CM. RADIER 170 KG/CM/M3 e= 7 CM. MADERA NATIVA 2" x 6" MADERA NATIVA 1" x 4" nativo 3" x 8" Viga maestra hormigon 225 kg /cem/m3. Sobrecimiento 15 x 40 cm 2 fe o 8 mm. Vigas bañadas con CREOSOTA CIMIENTO 40 x 70 CM. HORMIGON 170 kG/CM/M3 20% bolon desplazador 127.5 kG/CM/M3 EMPLANTILLADO MECANICAMENTE TERRENO APIZONADO 2 fe o 10 mm. LINEA DE TIERRA Cimiento 40 x 70 cm. Hormigon 170 kg/cem/m3. 20% bolon desplazador 127.5 kg/cem/m3 Emplantillado ESPARRAGO 6 MM NATIVO 2" x 3" E. o 6 mm MADERA NATIVA 3" x 8" VIGA MAESTRA Corte D - D ESCALA 1 / 20 F 2 fe 8 mm 2 fe o 10 mm. 2 fe o 10 mm. Pieza nativo 2" x 5" E. o 6 mm Sobrecimiento 15 x 40 cm. Corte B - B ESCALA 1 / 20 A ESPARRAGO 6 MM 127.5 kg/cem/m3 Emplantillado Cimiento 40 x 70 cm. Hormigon 170 kg/cem/m3. 20% bolon desplazador Hormigon 225 kg/cem/m3. Esc. : 1 / 50 PLANTA DE ARQUITECTURA 1 NIVEL DORM. PRINC. er PLANTA DE ARQUITECTURA 1 NIVEL Esc. : 1 / 50 ESCALA 1 / 20 VIGA DE PISO PISO

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features
Tags	assoalho, autocad, constructive, deck, details, DWG, fliese, fließestrich, floating floor, floor, flooring, floors, fußboden, holzfußboden, piso, plancher, plancher flottant, section, sections, tile, wooden
