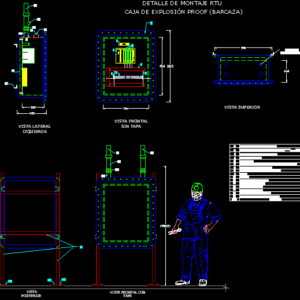

Montage of proof explosion box electric equipment – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Tb holder motorola ace, Wiring type dahl similar, Terminal block for terminal block, Mm terminal block, Omega track, Fixing screws with washer, Radio motorola similar, Rtu motorola ace similar, Universal uny, Firewall, angle, Double mm metal bottom, item, description, unity, quantity, Front view without lid, Power supply, Cpu, Motorola, Left side view, top view, rear view, Front view with lid, Assembly detail rtu, Explosion proof box, archive:, scale, Vo.bo., drawing, Ing. Proy., drawing, mechanic, size:, flat, Rev., operations, Vo.bo., Vo. Bo., inspection, Vo.bo., General notes, draft:, Assembly detail rtu, Conventions, date, description, by, reviewed, Approved, Revisions, Rev., Reference planes, Explosion proof box, Iluran reference similar, All measurements are in millimeters., Measures.

Raw text data extracted from CAD file:

\fVerdana|b0|i0|c0|p34;1 TB HOLDER MOTOROLA ACE 3600" \fVerdana|b0|i0|c0|p34;3 \fVerdana|b0|i0|c0|p34;2 \A1;REGLETA DE CABLEADO TIPO Dahl LVK/H \H0.7x;\S50 mm#75mm;\H1.4286x; O SIMILAR \fVerdana|b0|i0|c0|p34;1 \fVerdana|b0|i0|c0|p34;3 TOPE DE FIJACIÒN PARA BORNERA \fVerdana|b0|i0|c0|p34;2 \fVerdana|b0|i0|c0|p34;4 BORNERA DE 6 mm \fVerdana|b0|i0|c0|p34;100 5 RIEL OMEGA 1 6 TORNILLOS DE FIJACION M10 X 40 CON ARANDELA \fVerdana|b0|i0|c0|p34;50 7 RADIO MOTOROLA O SIMILAR 1 8 RTU MOTOROLA ACE 3600 O SIMILAR 1 9 \A1;HUB 2" 4 10 \A1;NIPLE 2" 2 11 \A1;UNION UNIVERSAL 2" UNY 2 12 \A1;SELLO CORTAFUEGO 2" 2 13 ÁNGULO 50 X 50 X12 1 14 \A1;TORNILLOS M10 X 2" 10 15 \A1;PLATINA 200 x 200 mm x \H0.7x;\S1#2;\H1.4286x;" 2 16 DOBLE FONDO METÁLICO DE 3.2 mm 1 Item Descripción Unidad Cantidad \A1;1183 \A1;954 \A1;754 \A1;790 \A1;813.5(E) \A1;1980(E) \A1;360 \A1;485 \A1;360 \A1;950 \W2.40634; VISTA FRONTAL \W7.06059; SIN TAPA POWER SUPPLY CPU ACE3600 5 MOTOROLA EM 200 5 5 \W2.74485; VISTA LATERAL \W5.58336; IZQUIERDA \W1.56576; VISTA SUPERIOR 5 813.5(E) 1980(E) \W4.97110; VISTA \W4.97110; POSTERIOR \W1.63839; VISTA FRONTAL CON \W1.63839; TAPA DETALLE DE MONTAJE RTU CAJA DE EXPLOSIÓN PROOF (BARCAZA)\H1.2857x; \A1;9 \A1;10 5 5 5 950 \A1;10 ARCHIVO: ESCALA Vo.Bo. DIBUJO ING. PROY. DIBUJÓ MECÁNICO TAMAÑO: 420x280mm NO Plano N° REV. OPERACIONES Vo.Bo. Vo. Bo. INSPECCIÓN Vo.Bo. NOTAS GENERALES PROYECTO: DETALLE DE MONTAJE RTU CONVENCIONES FECHA DESCRIPCIÓN POR REVISADO APROVADO REVISIONES REV. PLANOS DE REFERENCIA CAJA DE EXPLOSIÓN PROOF (BARCAZA) 1. REFERENCIA ILURAN XO-37 O SIMILAR DIMENSIONES:954x754x360 2. TODAS LAS MEDIDAS ESTAN EN MILÍMETRO. 3. (E) MEDIDAS ESTIMADAS.
