Details Hanging Lamp DWG Detail for AutoCAD

Details Hanging Lamp DWG Detail for AutoCAD

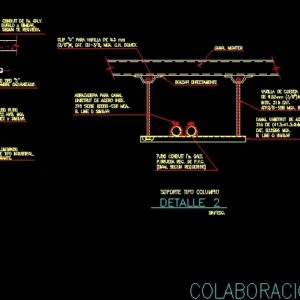

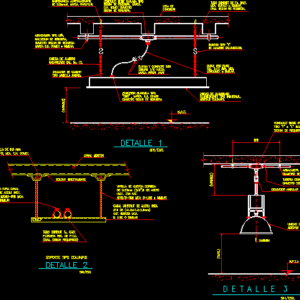

Details of suspended lamp

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

weld directly, swing type stand, p. of p.v.c., pipe conduit fe. galv., according, detail, cat. Mca. c.h. domex., mm rod clip, channel clamp, Stainless steel unistrut., series mca., b. line similar, unistrut channel of stainless steel., cat. Mca., b. line similar, Mca. Similary, of steel, running rope rod, canal monten, stainless steel. cat., luminary, diameter as required, nail clamp, diameter as indicated, metal additives from, lighting unit, angular hanger, conduit pipe, as required., type diameter, serial conduit, diam. as required., Mca. buffalo, conduit tube of faith. galv., slab of, concrete, c.h. domex diameter, as required., as marked, oval type conduit type, branded. rawlplug., self-tapping drill, of galvanized wire., condumex similar., lime. awg. Mca., heavy duty cable, hook type, n.p.t., lighting unit, fluorescent type, pendant mount, brand arrow .hart, sure turn, pin contact with, diameter as required., brand. c.h. domex, gland type connector, detail, diameter as required, hook hanger, wire chain, mark c.h. domex similar., cat if, open type armella., galvanized lime. do not., clamp type, collaboration: arq. antonio damian

Raw text data extracted from CAD file:

\A1;(VARIABLE) \A1;(VARIABLE) \A1;600 \A1;(7MTS.) SOLDAR DIRECTAMENTE SOPORTE TIPO COLUMPIO P.GRUESA REC. DE P.V.C. TUBO CONDUIT Fe. GALV. (DIAM. SEGUN REQUERIDO) DETALLE 2 (3/8")d, CAT. CU-3/8, MCA. C.H. DOMEX. CLIP "U" PARA VARILLA DE 9.5 mm ABRAZADERA PARA CANAL UNISTRUT DE ACERO INOX. 316 SERIE B2000-SS6 MCA. B. LINE O SIMILAR CANAL UNISTRUT DE ACERO INOX. 316 DE (41.3x41.3x2.6mm) SIN/ESC. CAT. B22SS6 MCA. B. LINE O SIMILAR ATR3/B-SS6 MCA. B-LINE o SIMILAR DE 9.53mm (3/8")d DE ACERO VARILLA DE CUERDA CORRIDA CANAL MONTEN INOX. 316 CAT. L LUMINARIA (7MTS.) D E T A L L E 3 SIN/ESC. DIAMETRO SEGUN SE REQUIERA ABRAZADERA TIPO UÑA DIAMETRO SEGUN SE INDIQUE ADITIVOS METALICOS DE 250W. UNIDAD DE ALUMBRADO DE 600 (VARIABLE) COLGADOR ANGULAR C TUBERIA CONDUIT SEGUN SE REQUIERA. TIPO "T" o "L" DIAMETRO CONDULET SERIE OVALADA, N.P.T.+ DIAM. SEGUN SE REQUIERA. MCA. BUFALO o SIMILAR, TUBO CONDUIT DE Fe. GALV. LOSA DE CONCRETO C.H. DOMEX DIAMETRO SEGUN SE REQUIERA. SEGUN SE REQUIERA, MARCA. CONDULET SERIE OVALADA TIPO DE 9.5mm.d, MARCA. RAWLPLUG. BARRENANCLA AUTOTALADRANTE DE ALAMBRE GALVANIZADO. CONDUMEX o SIMILAR. CAL. 2x12 AWG. MCA. CABLE USO RUDO GANCHO TIPO "S" N.P.T. UNIDAD DE ALUMBRADO FLUORESCENTE TIPO INDUSTRIAL, MONTAJE COLGANTE. MARCA ARROW .HART SEGURO 1/2 VUELTA CLAVIJA Y CONTACTO CON DIAMETRO SEGUN SE REQUIERA. "CGB" , MARCA. C.H. DOMEX CONECTOR GLANDULA TIPO SIN/ESC. DETALLE 1 DIAMETRO SEGUN SE REQUIERA COLGADOR DE GANCHO CADENA DE ALAMBRE MARCA C.H. DOMEX o SIMILAR. CAT.SEGUN SE REQUIERA, TIPO ARMELLA ABIERTA. GALVANIZADO CAL. No. 12. (VARIABLE) ABRAZADERA TIPO UÑA, COLABORACION: ARQ. ANTONIO DAMIAN

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
