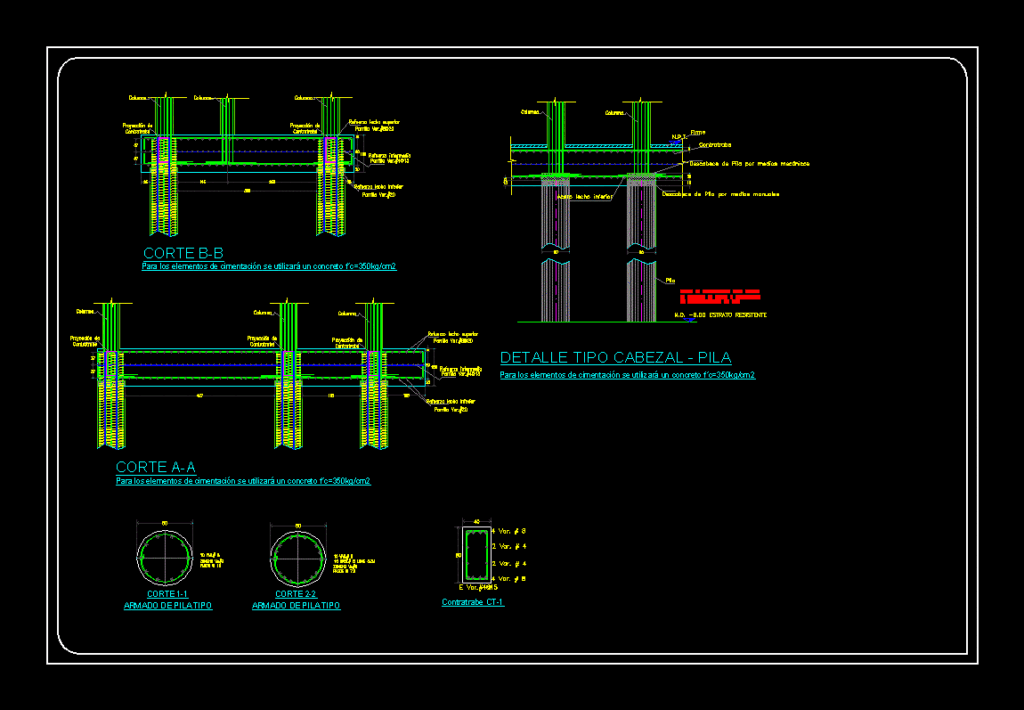

PILING CONTAINING THE DETAILS OF A GREAT HOTEL

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cut, zuncho steps, armed with battery type, zuncho steps, cut, armed with battery type, long, contratrabe, var., var., lower bed reinforcement, grill, intermediate reinforcement, grill, upper bed reinforcement, grill, column, column, upper bed reinforcement, grill, intermediate reinforcement, grill, lower bed reinforcement, grill, column, n.d. stratum resistant, battery, disembowels by means of mechanical means, disables stack by manual means, contratrabe, detail head type battery, for the elements of foundation will be used a concrete, steel bottom bed, firm, n.p.t., cut, contratrabe projection, note: penetration must arrive, to the support stratum, an embedding of, for the elements of foundation will be used a concrete

Raw text data extracted from CAD file:

80 CORTE 1-1 10 VAR.# 8 ZUNCHO Vs.#3 PASOS @ 15 79.99999999992724 ARMADO DE PILA TIPO 10 VAR.# 8 ZUNCHO Vs.#3 PASOS @ 7.5 79.99999999992724 CORTE 2-2 ARMADO DE PILA TIPO +5 BAST.# 8 LONG 3.2M Contratrabe CT-1 5 5 2 Var. # 4 E Var.#4@15 4 Var. # 8 4 Var. # 8 2 Var. # 4 80 80 40 80 20 108 37 37 108 398 8 37 37 427 165 105 20 80 8 143 255 25 25 80 80 15 20 15 5 8 Refuerzo lecho inferior Parrilla Var.#20 5 5 5 5 Refuerzo intermedio Parrilla Var.#4@15 Refuerzo lecho superior Parrilla Var.#8@20 Columna Columna Columna 5 5 5 5 5 5 5 Columna Columna Columna 5 5 5 5 Refuerzo lecho superior Parrilla Var.#8@20 Refuerzo intermedio Parrilla Var.#4@15 Refuerzo lecho inferior Parrilla Var.#20 5 5 5 5 5 Columna Columna N.D. -9.00 ESTRATO RESISTENTE Pila 5 5 5 5 Descabece de Pila por medios mecánicos Descabece de Pila por medios manuales Contratrabe DETALLE TIPO CABEZAL - PILA Para los elementos de cimentación se utilizará un concreto f´c=350kg/cm2 5 5 Acero lecho inferior Firme 5 N.P.T. CORTE A-A CORTE B-B Proyección de Contratrabe Proyección de Contratrabe Proyección de Contratrabe Proyección de Contratrabe Proyección de Contratrabe NOTA: LA PENETRACIÓN DEBE LLEGAR AL ESTRATO DE APOYO Y GARANTIZAR UN EMPOTRAMIENTO DE 3M. Para los elementos de cimentación se utilizará un concreto f´c=350kg/cm2 Para los elementos de cimentación se utilizará un concreto f´c=350kg/cm2

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
