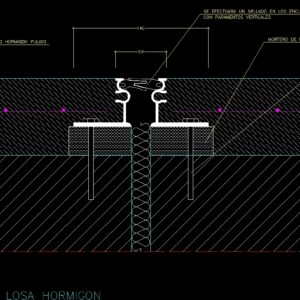

Dilatation joint of concrete slab

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Forged slab, Mesh, Polished concrete, With vertical faces, Will be carried out in the meetings, each, Chemical anchors, Leveling mortar, Concrete slab

Raw text data extracted from CAD file:

\A1;140 \A1;53 \A1;30 \A1;50 \A1;80 -0.0449923137595416 -0.0449923137595416 -0.0449923137595416 -0.0449923137595416 -0.0449923137595416 LOSA FORJADO MALLAZO 150.150.6mm. RECRECIDO HORMIGON PULIDO CON PARAMENTOS VERTICALES SE EFECTUARA UN SRLLADO EN LOS ENCUENTROS CADA 300mm. ANCLAJES QUIMICOS M.16 MORTERO DE NIVELACION DETALLE JUNTA DILATACION LOSA HORMIGON

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, béton armé, block, concrete, dilatation, DWG, formwork, joint, reinforced concrete, schalung, slab, stahlbeton
