Domociliary Connection Potable Water DWG Detail for AutoCAD

Domociliary Connection Potable Water DWG Detail for AutoCAD

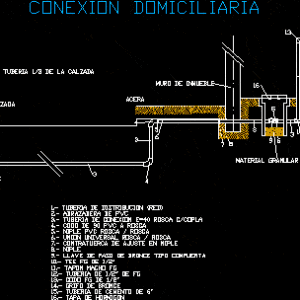

Constructive detail of domiciliary connection potable water

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

shaft road pipeline, road, wall of property, sidewalk, granular material, concrete cover, cement pipeline, bronze faucet, elbow fg, FG pipe, male plug fg, tee fg, gate type bronze stopcock, adjustment nut on nipple, universal union thread, pvc nipple thread, pvc elbow threaded, connecting pipe thread, pvc clamp, distribution pipe, niple, home connection

Raw text data extracted from CAD file:

0.30 0.60 5 2 3 4 3 6 EJE TUBERIA 1/3 DE LA CALZADA CALZADA MURO DE INMUEBLE ACERA 4 3 MATERIAL GRANULAR E= 0.10 8 7 9 6 10 3 0.30 0.60 16 5 11 13 12 14 1 16.- TAPA DE HORMIGON 15.- TUBERIA DE CEMENTO DE 6" 14.- GRIFO DE BRONCE 13.- CODO FG DE 1/2" 12.- TUBERIA DE 1/2" DE FG 11.- TAPON MACHO FG 10.- TEE FG DE 1/2" 9.- LLAVE DE PASO DE BRONCE TIPO COMPUERTA 7.- CONTRATUERCA DE AJUSTE EN NIPLE 6.- UNION UNIVERSAL ROSCA / ROSCA 5.- NIPLE PVC ROSCA / ROSCA 4.- CODO DE 90 PVC A ROSCA 3.- TUBERIA DE CONEXION E=40 ROSCA C/COPLA 2.- ABRAZADERA DE PVC 1.- TUBERIA DE DISTRIBUCION (RED) 8.- NIPLE CONEXION DOMICILIARIA

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, connection, constructive, DETAIL, domiciliary, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, potable, provision, wasser bestimmung, water
