Double roof Detail – exterior plywood – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

pine, type hydrophobic, of plasterer, thermoacustica, galvanized prepainted black color.

Raw text data extracted from CAD file:

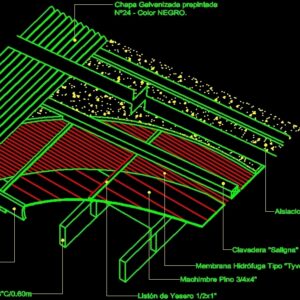

\A1;Machimbre Pino 3/4x4" \A1;Membrana Hidrófuga Tipo "Tyvek" \A1;Clavadera "Saligna" 2x3" \A1;Listón de Yesero 1/2x1" \A1;Aislacion Termoacustica C/B.Vapor \A1;Cabios P.Nac.2x6"C/0.60m \A1;Chapa Galvanizada prepintada Nº24 - Color NEGRO. \A1;Cenefa P.Nac.1x4"

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
