Drain Housing DWG Block for AutoCAD

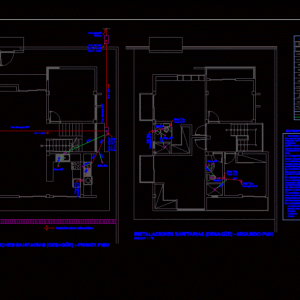

Drainage facilities detached house with four bedrooms in her first floor and 4 bedrooms on the second floor
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
First floor bathroom, Sanitary second floor, Technical specifications, The accessory pipes for the cold water system will be of the pvc type type for a working pressure of built-in burials. Valve should be installed between two joints that will be installed in wall will be housed in box type niche will be seen in the records will be bronze with slot cover placed at the level of finished floor. Pipe fittings for the drain system will be pvc type spigot bell for working pressure of the ventilation pipes will be extended up to m.s.p.t. Of the one carrying at its upper end a cap of pvc., The hydraulic tests for the cold water networks will be carried out before being buried using a hand pump, by means of which the test net is filled with water, remaining for minutes without any leakage for approval. The drainage drainages will extend to the ceiling as ventilation pipes will have a ventilation sump on the terminal of the finished roof. The slope of the pipes will be from the water outlet heights for the different appliances are: toilet wash basin shower, Elbow, reduction, Double sanitary tee, Yee simple, trap, Elbow, Tee, sink, Yee double, Blind registration box, register machine, Legend drain, drainpipe, Ventilation pipe, tee, Threaded registration on floor, Sum, Sum, Up tub Vent., Low tub drain, Up tub Vent., Go public collector, Go gut, Sum, Sum, Rain gutter with metal grid, Arrives tub. drain, C., Arrives tub. drain, C., your B. drain
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Block |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | |
| Measurement Units | |
| Footprint Area | |
| Building Features | Car Parking Lot |
| Tags | autocad, bedrooms, block, detached, drain, drainage, DWG, einrichtungen, facilities, floor, gas, gesundheit, house, Housing, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, sewer, wasser bestimmung, water |
