Dry Transformer DWG Block for AutoCAD

Dry Transformer DWG Block for AutoCAD

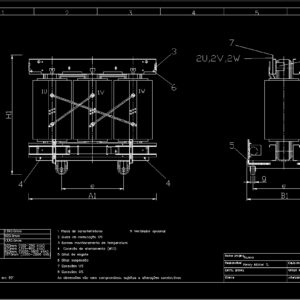

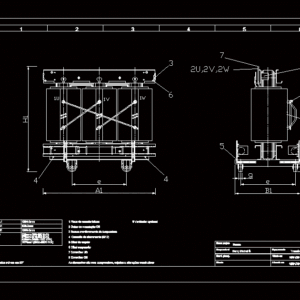

Detalle construction of a dry dry low voltage transformer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

Project name, responsible, Office. Plan, client, equipment, Created in, Changed in, New, Dry transformer, leaf, Mobile rolls in, Grounding connection, Temperature monitoring terminals, Switches, Rating plate, Connections, Connections us, Eyelet suspension, Coupling eye, Optional fan, Dimensions are subject to change without notice, Of fl., Henry michel s.

Raw text data extracted from CAD file:

D C B A 1 2 3 4 5 6 Nome projeto Responsável Escrit. planej. Cliente Equipamento Criado em Alterado em Nuevo Transformador seco 15/01/2015 15/01/2015 folha 2 e 520mm (100-250 kVA) 670mm (315-800 kVA) 820mm (1000-1600 kVA) 1070mm (2000-2500 kVA) H1 1330.0mm B1 820.0mm A1 1390.0mm Rolos móveis em 90° 4 Conexão de aterramento (M12) 3 Bornes monitoramento de temperatura 2 Guias de comutação OS 1 Placa de características 8 Conexões OS 7 Conexões US 6 Olhal suspensão 5 Olhal de engate 9 Ventilador opcional As dimensões são sem compromisso, sujeitas a alterações construtivas 1 9 5 3 2 4 4 1W 1V 1U 6 e B1 g k 8 7 2U,2V,2W A1 H1 e de 106 fl. Henry Michel S.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

Project name, responsible, Office. Plan, client, equipment, Created in, Changed in, New, Dry transformer, leaf, Mobile rolls in, Ground connection, Temperature monitoring terminals, Switches, Rating plate, Connections, Connections us, Eyelet suspension, Coupling eye, Optional fan, Dimensions are subject to change without notice, Of fl., Henry michel s.

Raw text data extracted from CAD file:

D C B A 1 2 3 4 5 6 Nome projeto Responsável Escrit. planej. Cliente Equipamento Criado em Alterado em Nuevo Transformador seco 15/01/2015 15/01/2015 folha 2 e 520mm (100-250 kVA) 670mm (315-800 kVA) 820mm (1000-1600 kVA) 1070mm (2000-2500 kVA) H1 1330.0mm B1 820.0mm A1 1390.0mm Rolos móveis em 90° 4 Conexão de aterramento (M12) 3 Bornes monitoramento de temperatura 2 Guias de comutação OS 1 Placa de características 8 Conexões OS 7 Conexões US 6 Olhal suspensão 5 Olhal de engate 9 Ventilador opcional As dimensões são sem compromisso, sujeitas a alterações construtivas 1 9 5 3 2 4 4 1W 1V 1U 6 e B1 g k 8 7 2U,2V,2W A1 H1 e de 106 fl. Henry Michel S.

Language	Portuguese
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	alta tensão, autocad, beleuchtung, block, construction, constructive detail, détails électriques, detalhes elétrica, detalle, dry, DWG, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, torre, tower, transformer, treatment plant, turm, voltage
