EAVES WITH CHUTE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

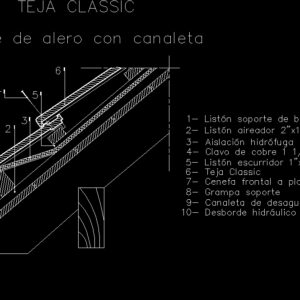

water-repellent insulation, copper nail, edge support rail, classic tile, drainer strip, classic tile, aerator strip, eave detail with gutter, drainage channel, support clamp, Front hardwood lead panel, hydraulic overflow of galvanized sheet

Raw text data extracted from CAD file:

1 2 3- Aislación hidrófuga 4- Clavo de cobre 1 1/2" 1- Listón soporte de borde 2"x2" 4 3 TEJA CLASSIC 9 5 5- Listón escurridor 1"x1/2" 6- Teja Classic 6 2- Listón aireador 2"x1" Detalle de alero con canaleta 9- Canaleta de desague 7 8- Grampa soporte 7- Cenefa frontal a plomo de madera dura 8 10 10- Desborde hidráulico de chapa galvanizada
