Electric Anchor Bolt DWG Block for AutoCAD

Electric Anchor Bolt DWG Block for AutoCAD

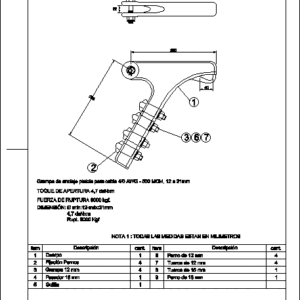

Electric anchor bolt

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Awg gun type anchorage mcm primary substation kv., Note all measurements are in millimeters, body, Fixing bolts, Grampa mm, Pin mm, Thrash, item, description, Anchor pistol for awg cable, Opening danxm, Kgf rupture., Danxm rupt. Kgf, item, description, Mm pin, Mm nut, Mm nut, Mm pin, Cant

Raw text data extracted from CAD file:

\A1;260 \A1;265 \A1;40 \A1;22 5 5 5 5 \A1;Grampa de Anclaje tipo pistola 4P,P/Cond. de aluminio, 4/0 AWG a 500 MCM dmat-094 Subestación Primaria 110 kV. NOTA 1 : TODAS LAS MEDIDAS ESTAN EN MILIMETROS 1 Cuerpo 2 Fijación Pernos 3 Grampa 12 mm 4 Pasador 16 mm 5 Golilla Item Descripción \A1;Grampa de anclaje pistola para cable 4/0 AWG - 500 MCM, 12 a 21mm. \A1;TOQUE DE APERTURA 4,7 daNxm \A1;FUERZA DE RUPTURA 8000 kgf. \A1;DIMENSIÓN: d mín:12-máx:21mm 4,7 daNxm Rupt. 8000 Kgf Item Descripción 6 Perno de 12 mm 7 Tuerca de 12 mm 8 Tuerca de 16 mm 9 Perno de 16 mm cant. cant. 1 4 4 1 1 4 4 1 1 4 5 8 9 1 3 2 6 7

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	alta tensão, anchor, autocad, beleuchtung, block, bolt, détails électriques, detalhes elétrica, DWG, electric, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, torre, tower, treatment plant, turm
