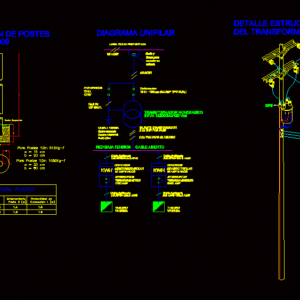

Foundation pole structures; Line Diagram and detailed structure of the transformer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Detail structure, Of the transformer, Kva volt, Cu thw for neutral, Amp, Thermomagnetic, Awg, Anti-fraud cable, board, living place, Single-phase double-sided, switch, Amp threads, Awg, Anti-fraud cable, Low voltage network, accountant, Kwh, Open cable, ohm, Copper nude, caliber, Earth line, Transformer downspout, Cu thw per phase, Single-phase transformer, Kv amp type, lighting rod, Galv., Acsr, circuit breaker, Projected kv line, Nm., Connect in, Staple for, hot, loop, concrete, Post type, Excavation for poles, Foundation of poles, excavation, Depth of, Burial, post, diameter, I get packed, line, Of burial, Amp, Thermomagnetic, Awg, Anti-fraud cable, board, living place, Bifasic trifilar, switch, Amp threads, Awg, Anti-fraud cable, accountant, Kwh, For posts, For posts, Acsr, Dps

Raw text data extracted from CAD file:

DETALLE ESTRUCTURA DEL TRANSFORMADOR 5 KVA 13200/240/120 Volt 2 Cu THW PARA EL NEUTRO 1X20 AMP TERMOMAGNETICO 1x8 AWG+1No.8 AWG Cable Antifraude TABLERO VIVIENDA MONOFASICO BIFILAR INTERRUPTOR 15 AMP 2 HILOS 1x8 AWG+1No.8 AWG Cable Antifraude RED BAJA TENSION CONTADOR KWH CABLE ABIERTO R<10 Ohm Cobre desnudo Calibre No2AWG LINEA A TIERRA BAJANTE TRANSFORMADOR 2 Cu THW POR FASE TRANSFORMADOR MONOFASICO 15 Kv - 100Amp (0.4 AMP TIPO DUAL) PARARRAYOS No.2 Cu 1/2" GALV. 12 KV 10 KA 1/0 ACSR Cortacircuitos LINEA 13.2 kV PROYECTADA DIAGRAMA UNIFILAR conectar en Grapa para caliente Bucle y Concreto Tipo de poste EXCAVACION PARA POSTES CIMENTACION DE POSTES 8m 12m Excavacion t (m) Profundidad de 1.5 1.9 Enterramiento Poste D (m) d(m) Diametro 1.4 1.8 0.30 + 0.15 0.40 + 0.20 a a H t Recebo Compactado b Línea de enterramiento d LA 009 2X20 AMP TERMOMAGNETICO 2x8 AWG+1No.8 AWG Cable Antifraude TABLERO VIVIENDA BIFASICO TRIFILAR INTERRUPTOR 15 AMP 3 HILOS 2x8 AWG+1No.8 AWG Cable Antifraude CONTADOR KWH a = 15 cm b = 20 cm Para Postes 12m 510Kg-F a = 20 cm b = 80 cm Para Postes 12m 1050Kg-F 1/0 ACSR DPS

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	alta tensão, autocad, beleuchtung, DETAIL, detailed, details, détails électriques, detalhes elétrica, diagram, DWG, electrical, electrical details, elektrische details, FOUNDATION, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, line, Pole, single line diagram, structure, structures, torre, tower, transformer, treatment plant, turm
