Electrical Symbology DWG Block for AutoCAD

Electrical Symbology DWG Block for AutoCAD

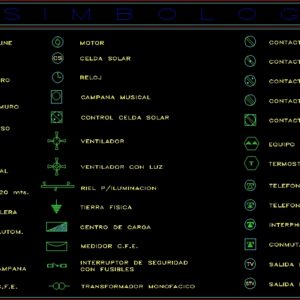

Symbols electric

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stv, ground contact, three-phase contact, weather contact, contact on plafond, thermostat, air conditioning equipment, phone, telephone in floor, interphone, TV out, switch, contact mts., registry, bell sump, c.f.e., directional spot, mts., staircase eraser, pta control. autom., doorbell, center exit, flying buttress, floor buttress, spot, slim line lamp, solar cell, security switch, with fuses, single-phase transformer, load center, c.f.e., physical earth, rail, fan with light, solar cell control, musical bell, fan, clock, motor, ground contact, three-phase contact, weather contact, contact on plafond, thermostat, air conditioning equipment, phone, telephone in floor, interphone, TV out, switch, contact mts.

Raw text data extracted from CAD file:

SL CS AA T TV STV CONTACTO A TIERRA CONTACTO TRIFASICO CONTACTO DE INTEMPERIE CONTACTO EN PLAFOND TERMOSTATO EQUIPO DE AIRE ACONDICIONADO TELEFONO TELEFONO EN PISO INTERPHONE SALIDA DE TV SALIDA DE TV P/SATELITE CONMUTADOR CONTACTO HT=0.40 mts. S I M B O L O G I A S I M B O L O G I A REGISTRO SUMBADOR O CAMPANA ACOMETIDA C.F.E. SPOT DIRECCIONAL APAGADOR h=1.20 mts. APAGADOR ESCALERA CONTROL PTA. AUTOM. TIMBRE SALIDA DE CENTRO ARBOTANTE EN MURO ARBOTANTE A PISO SPOT LAMPARA SLIM LINE CELDA SOLAR INTERRUPTOR DE SEGURIDAD CON FUSIBLES TRANSFORMADOR MONOFACICO CENTRO DE CARGA MEDIDOR C.F.E. TIERRA FISICA RIEL P/ILUMINACION VENTILADOR CON LUZ CONTROL CELDA SOLAR CAMPANA MUSICAL VENTILADOR RELOJ MOTOR CONTACTO A TIERRA CONTACTO TRIFASICO CONTACTO DE INTEMPERIE CONTACTO EN PLAFOND TERMOSTATO EQUIPO DE AIRE ACONDICIONADO TELEFONO TELEFONO EN PISO INTERPHONE SALIDA DE TV SALIDA DE TV P/SATELITE CONMUTADOR CONTACTO HT=0.40 mts.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, DWG, electric, electrical, simbolismo, symbolik, symbolism, symbolisme, symbology, symbols
