Elevator Box DWG Detail for AutoCAD

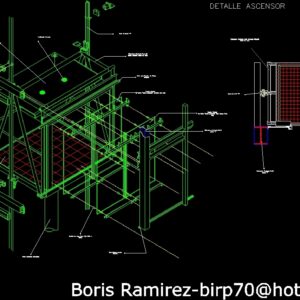

Axonometry of elevator with glass doors – details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

profile guide, bearing structure box c. stainless steel., guide for folded sheet metal door, inner glass door colorless mm, outer door of dark gray glass mm, Forced ventilation, box with lighting elements, colorless glass, pipe support of fixed main structure, stainless steel handrail, screw ac. stainless steel. for fixing guide glass, reconstituted granite floor, fixing s, bottom guide outer door, hydraulic lifting pipe, double profile bearing structure, colorless glass, plant, profile guide, bearing structure box c. stainless steel., double profile bearing structure, axonometry, elevator detail, boris

Raw text data extracted from CAD file:

Guía de Perfil "T" Estructura Portante Caja (\H0.7502x;Æ \fBankGothic Lt BT|b0|i0|c0|p34;\H1.333x;Según Cálculo) Caño Ac. Inox. Guía para Puerta de Chapa Doblada Puerta Interior de Vidrio "Float Laminado" Incoloro 6+6 mm Puerta Exterior de Vidrio "Float Laminado" Gris Oscuro 6+6 mm Ventilación Forzada Caja con elementos de Iluminación Vidrio "Float Templado" Incoloro 6+6mm Caño Soporte de Guías, Fijado a estructura Principal Pasamano Acero Inoxidable Tornillo Ac. Inox. Para Fijar Guía a Vidrio Piso de Granito Reconstituido Fijación Guia a estructura Portante (Chapa 1/8") Guia Inferior Puerta Exterior Caño Elevación Hidráulica Estructura Portante Perfil doble "T" Vidrio "Float Templado" Incoloro 6+6mm Planta Guía de Perfil "T" Estructura Portante Caja (\H0.7502x;Æ \fBankGothic Lt BT|b0|i0|c0|p34;\H1.333x;Según Cálculo) Caño Ac. Inox. Estructura Portante Perfil doble "T" Axonometría DETALLE ASCENSOR Boris Ramirez-birp70@hotmail.com

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Glass, Steel
Measurement Units
Footprint Area
Building Features	Elevator
Tags	ascenseur, aufzug, autocad, axonometry, box, DETAIL, details, doors, DWG, einrichtungen, elevador, elevator, facilities, gas, gesundheit, glass, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, wasser bestimmung, water
