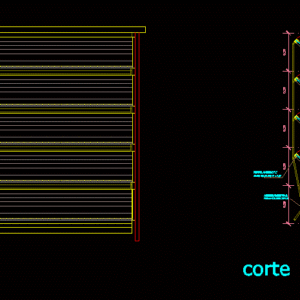

Extreme Metal joinery cut with front view and (Santamaria)

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

safety glass, contravidrio tubo, accionamiento, planchuela, iron plate, accionamiento a, multiple lever, corte, vista

Raw text data extracted from CAD file:

\A1;0.28 \A1;0.28 \A1;0.28 \A1;0.28 \A1;0.28 ALAS IGUALES 11/8" x 1/8" ESTRUCTURAL 10 x 10 MM Vidrio de seguridad 3+3 mm HOJA - PERFIL ANGULO "L" CONTRAVIDRIO TUBO ACCIONAMIENTO 1/4" x 1/8" PLANCHUELA 5 5 5 5 5 ALAS IGUALES 1" x 1/8" PERFIL ANGULO "L" PLANCHUELA DE HIERRO MARCO PNL 1 1/4" - EMPOTRADO A MURO ALAS IGUALES 1" x 1/8" PERFIL ANGULO "L" ACCIONAMIENTO A PALANCA MULTIPLE corte vista

Language	Spanish
Drawing Type	Block
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Glass, Other
Measurement Units	Metric
