Facade Section DWG Section for AutoCAD

Facade Section DWG Section for AutoCAD

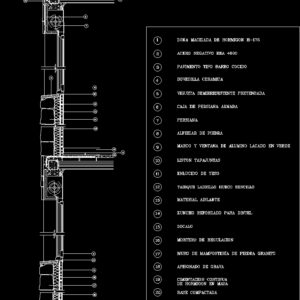

Facade Section – Small vault

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Single hollow brick partition, facade, section, Granite stone masonry wall, concrete area of concrete, steel negative rea, paved clay type floor, ceramic swirl, semi-resistant pre-stressed beam, armored blind box, blind, lightening of stone, frame aluminum window lacquered in green, glance, plaster plaster, insulating material, reinforced zuncho for lintel, zocalo, Regulation mortar, stacked gravel, foundation continues, of concrete in mass, compacted base, asphalt cloth bib

Raw text data extracted from CAD file:

TABIQUE LADRILLO HUECO SENCILLO Fachada Seccion MURO DE MAMPOSTERÍA DE PIEDRA GRANITO 1 2 3 4 5 6 7 8 9 10 11 12 17 13 14 15 16 1 ZONA MACIZADA DE HORMIGON H-175 2 ACERO NEGATIVO REA 4600 3 PAVIMENTO TIPO BARRO COCIDO BOVEDILLA CERAMICA 4 5 VIGUETA SEMIRRESISTENTE PRETENSADA 6 CAJA DE PERSIANA ARMADA 7 PERSIANA 8 ALFEIZAR DE PIEDRA 9 MARCO Y VENTANA DE ALUMINO LACADO EN VERDE 10 LISTON TAPAJUNTAS 11 ENLUCIDO DE YESO 12 13 MATERIAL AISLANTE 14 ZUNCHO REFORZADO PARA DINTEL 15 ZOCALO 16 MORTERO DE REGULACION 17 APISONADO DE GRAVA CIMENTACION CONTINUA DE HORMIGON EN MASA BASE COMPACTADA BABERO DE TELA ASFALTICA 18 19 20 21 18 19 20 21 3 16 15 13 17 12 11 10 9

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
