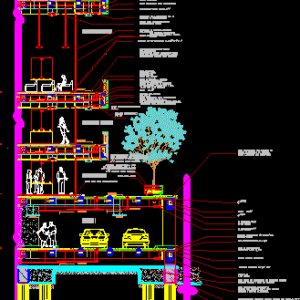

Facade Sections DWG Section for AutoCAD

Facade Sections DWG Section for AutoCAD

Facade Sections – False ceiling – Balcony – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Prefabricated reinforced concrete pile thickness, counter-barrage of reinforced concrete armed with rods of, Poor concrete stencil from under league bindings, die of reinforced concrete armed with rods to receive column piles of friction., resistant layer, n.p.t., basement, strip of pine wood from, Firm concrete with white marble aggregate finish grain cms. of thickness., ground for garden, strip of pine wood from, hollow leaving only the steel, wide metal grid with iron solera, mca helvex mod., pending, registration plug, luminary, n.p.t., level, n.p.t., type plant, n.p.t., roof plant, n.p.t., low level, pending, pending, low level, second level, rooftop, pending, concrete compression, concrete polished finish, electrowelded, iron angles of, lock, a.s.t.m., screws, license plate, a.s.t.m., screws, slab base, slab foundation concrete reinforced concrete, prefabricated planter gray concrete base with white marble aggregate finish exposed grain., prefabricated wall brand pretecse gray concrete base with white marble aggregate of exposed grain finish., thick annealing red brick wall seated with mortar, lock, chain of concrete reinforced with var. its T., Drowned plate in prefabricated wall, prefabricated wall brand pretecse gray concrete base with white marble aggregate of exposed grain finish., chain of concrete reinforced with var. its T., Drowned plate in prefabricated wall, metal pole usg caliber, hilti wire rod anchor cm, license plate, ceramic tile model veneto mca. seated interceramic with prop mix. with integrated gray cement grout base bone joint, thick glass, pine plywood bed, chandelier of anodized aluminum mca. duranidic, cajillo to house lighting dimensions by design, Wire suspension galv. lime. in both ways, mca modular ceiling hunter douglas mod. wood suspension black color, Thick wall conduit tube, floor of stave machimbrada with varnish doll, canal for condensation water, second level

Raw text data extracted from CAD file:

\A1;97 \A1;97 \A1;321 PILOTE PREFABRICADO DE CONCRETO ARMADO d 75cm ESPESOR CONTRATRABE DE CONCRETO ARMADO ARMADA CON VARILLAS DE 1" DE 1.00 X 0.50m PLANTILLA DE CONCRETO POBRE f'C=100kg/cm² DE 5cm DE ALTO, DEBAJO DE TRABES DE LIGA DADO DE CONCRETO ARMADO D-2 ARMADO CON VARILLAS DE 1", PARA RECIBIR COLUMNA Y PILOTES DE FRICCIÓN. CAPA RESISTENTE N.P.T. -3.60 SOTANO Sotano T-2 TIRA DE MADERA DE PINO DE 1a DE 60mm X 40mm TIRA DE MADERA DE PINO DE 1a DE 60mm X 40mm TIRA DE MADERA DE PINO DE 1a DE 60mm X 40mm 5 5 5 FIRME DE CONCRETO CON AGREGADO DE MARMOL BLANCO DE 3/4", ACABADO GRANO EXPUESTO.5 cms. DE ESPESOR. TIERRA PARA JARDIN TIRA DE MADERA DE PINO DE 1a DE 60mm X 40mm L-3 L-3 L-3 L-3 HUECO DE 20x5.48cms DEJANDO UNICAMENTE LA LOSACERO REJILLA METALICA DE 0.20 DE ANCHO CON SOLERA DE FIERRO DE 1/8"x3/4" COLADERA MCA. HELVEX MOD. 282-H PENDIENTE 2% PENDIENTE 2% TAPÓN REGISTRO LUMINARIA LUMINARIA N.P.T. +3.60 1er NIVEL N.P.T. +6.80 PLANTA TIPO N.P.T. +12.00 PLANTA AZOTEA N.P.T. +0.15 PLANTA BAJA PENDIENTE 2% T-3 T-3 T-3 T-3 PENDIENTE 2% PLANTA BAJA SEGUNDO NIVEL AZOTEA PENDIENTE 2% PENDIENTE 2% PENDIENTE 2% PENDIENTE 2% \A1;CAPA DE COMPRESION DE CONCRETO F'c=200 kg/cm2 \A1;FIRME DE CONCRETO DE F'c=200 Kg/cm2, ACABADO PULIDO \A1;MALLA ELECTROSOLDADA 6x6-6/6 ÁNGULOS DE FIERRO DE 1/4" X 3" TRABE T-3 0.433 X 0.177 A-490 A.S.T.M. 18 TORNILLOS d 3/4" PLACA e=1/2" E7018 1" - 2 " 3 8 - E7018 A-490 A.S.T.M. 10 TORNILLOS d 3/4" LOSA A BASE DE CASETONES LOSA FONDO DE CIMENTACIÓN DE CONCRETO ARMADO F'C= 250 kg/cm2 Y 15cm DE ESPESOR JARDINERA PREFABRICADO A BASE DE CONCRETO GRIS F'c=250 kg/cm2, CON AGREGADO DE MARMOL BLANCO DE 3/4", ACABADO GRANO EXPUESTO. MURO PREFABRICADO MARCA PRETECSA A BASE DE CONCRETO GRIS F'c=250 kg/cm2, CON AGREGADO DE MARMOL BLANCO DE 3/4", ACABADO GRANO EXPUESTO. MURO DE TABIQUE ROJO RECOCIDO DE 14cms. DE ESPESOR ASENTADO CON MORTERO CEMENTO-ARENA 1:5 L-3 L-3 TRABE T-1 IR 610x 101.6 kg/m. CADENA DE 15x15cms. DE CONCRETO F'c=200 kg/cm2., ARMADO CON 4 VAR. d3/8", EST. d1/4" @ 20cms. PLACA AHOGADO EN MURO PREFABRICADO MURO PREFABRICADO MARCA PRETECSA A BASE DE CONCRETO GRIS F'c=250 kg/cm2, CON AGREGADO DE MARMOL BLANCO DE 3/4", ACABADO GRANO EXPUESTO. CADENA DE 15x15cms. DE CONCRETO F'c=200 kg/cm2., ARMADO CON 4 VAR. d3/8", EST. d1/4" @ 20cms. PLACA AHOGADO EN MURO PREFABRICADO POSTE METALICO USG CALIBRE 26 @ 61cm ANCLA DE ALAMBRON HILTI @ 61 cm PLACA e=1/2" LOSETA CERAMICA MODELO VENETO MCA. INTERCERAMIC ASENTADO CON MEZCLA DE CEMENTO-ARENA PROP. 1:4, CON JUNTA A HUESO A BASE DE LECHAREADO DE CEMENTO GRIS INTEGRADO CRISTAL DE 6mm. DE ESPESOR CAMA DE TRiPLAY DE PINO DE 1A DE \S3/4;" X 4" X 8" CANCELERIA DE ALUMINIO ANODIZADO MCA. DURANIDIC CAJILLO PARA ALOJAR ILUMINACION DIMENSIONES POR DISEÑO SUSPENSION DE ALAMBRE GALV. CAL. 16 @ 122cms. EN AMBOS SENTIDOS PLAFON MODULAR DE 61x61cms. MCA. HUNTER DOUGLAS MOD. MADERA FISURADA, SUSPENSION DONN/VISIBLE COLOR NEGRO TUBO CONDUIT PARED GRUESA 3/4" PISO DE DUELA MACHIMBRADA DE 12.7mm CON BARNIZ A MUÑECA DE 1mm -0.15 +0.30 CANAL PARA AGUA DE CONDENSACION SEGUNDO NIVEL

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features	Garden / Park
Tags	autocad, balcony, ceiling, construction details section, cut construction details, details, DWG, facade, false, section, sections
