Facades DWG Block for AutoCAD

Facades DWG Block for AutoCAD

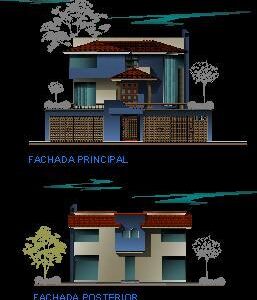

Facades main and later of a house in construction – Mexico

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

main facade, rear facade, key :, graphic scale :, dimension: meters, date :, design arq. building maldonado channels, general notes:, for the structural project, which must be respected the free heights indicated here, f a c h a d s, house room, e s t a d o m e x i c o

Raw text data extracted from CAD file:

\A1; FACHADA PRINCIPAL FACHADA POSTERIOR CLAVE: ESCALA GRAFICA: 0.5 0 2 4 1 3 5 ESCALA : S/E ACOTACION : METROS FECHA: JULIO / 06 DISEÑO ARQ. ARMANDO CANALES MALDONADO 3.- LAS COTAS DE LA ESTRUCTURA DEBEN SER ESPECIFICADAS 1.- LAS COTAS RIGEN AL DIBUJO 2.- LAS COTAS SE VERIFICARAN EN OBRA NOTAS GENERALES: POR EL PROYECTO ESTRUCTURAL, MISMO QUE DEBERA RES- 4.- NO SE USE ESTE PLANO PARA FINES DIFERENTES AL REFERIDO PETAR LAS ALTURAS LIBRES INDICADAS AQUI F A C H A D A S CASA HABITACION E S T A D O D E M E X I C O

Language	Spanish
Drawing Type	Block
Category	House
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	apartamento, apartment, appartement, aufenthalt, autocad, block, casa, chalet, construction, dwelling unit, DWG, facades, haus, house, logement, main, maison, mexico, residên, residence, unidade de moradia, villa, wohnung, wohnung einheit
