Facade’s Section DWG Section for AutoCAD

Facade’s Section DWG Section for AutoCAD

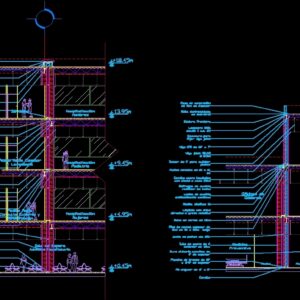

Section hospital with specifications and construction joint details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

compression layer thick, losacero imsa section cal., electrosold mesh of, border frame, pvc membrane resistant to interaction, clay plate, polypropylene felt separator layer, Easel for prefabricated dilatation joint, thick block pretil, screw, angular faith of, brass plate thick, steel tube of, paflon’s board, marble floor thickness of beige, metal ceiling of cm, Tensioner for clamping, welding to fix joist beam, beam joist, ipr beam, losacero imsa section cal., welding to fix joist beam, brass plate thick, screw, angular faith of, waiting room hospital admission, hallway to external rehabilitation, hospitalization women, hall towards dining laundry room, Pediatric hospitalization, services, hospitalization men, imaging, clinical laboratory, government offices, ipr beam, preventive medicine, autopsy room, hallway, border frame, electrosold mesh of, losacero imsa section cal., compression layer thick, beam joist, welding to fix joist beam, Tensioner for clamping, metal ceiling of cm, stainless steel screw with chazo each, Aluminum diaphragm laminate receiver, sikaflez putty, cleaning with grinding metal abrasive disc, continuous non-slip aluminum foil, marble zoclo from, marble floor thickness of beige, paflon’s board, steel tube of, split wall convitec thick, brass plate thick, angular faith of, screw

Raw text data extracted from CAD file:

Capa de compresión de 5cm de espesor Losacero IMSA secció 4 cal. 24 Malla eletrosoldada de 6x6-10/10 Moldura Frontera Membrana de PVC resistente a la interperie Membrana de PVC resistente a la interperie Plancha colaminada (Alkorplan) Capa separadora de fieltro de polipropileno Caballete para junta de dilatación de pieza prefabricada Pretil de block de 20 x 20 x 40cm de espesor Tornillo Fe angular de 2" x 2" Plancha de bronce de 10" x 3/8" de espesor Tubo de acero de d esterior de 40cm Junta de paflon del 25% Piso de marmol espesor de 2cm de 30 x 30cm beige Plafon metalico de 61 x 61 cm Tensor de 1" para sujetar plafon Soldadura para fijar viga joist Viga joist 50LH9 @ 2.50m Viga IPR de 16" x 7" Losacero IMSA secció 4 cal. 24 Soldadura para fijar viga joist Plancha de bronce de 10" x 3/8" de espesor Tornillo Fe angular de 2" x 2" +18.45m 13.95m +9.45m +4.95m +0.45m Sala de Espera Admisión Hospitalaria Pasillo Hacia Consulta Externa y Rehabilitación Hospitalización Mujeres Pasillo Hacia Comedor y Lavanderia Hospitalización Pediatria Servicios Hospitalización Hombres Imagenologia Laboratorio Clinico Oficinas de Gobierno Viga IPR de 16" x 7" 13.95m +9.45m +4.95m +0.45m Medicina Preventiva Sala de Autopsias Pasillo Pasillo Moldura Frontera Malla eletrosoldada de 6x6-10/10 Losacero IMSA secció 4 cal. 24 Capa de compresión de 5cm de espesor Viga joist 50LH9 @ 2.50m Soldadura para fijar viga joist Tensor de 1" para sujetar plafon Plafon metalico de 61 x 61 cm Tornillo acero inoxidable con chazo a cada 35cm Diafragma de aluminio recibidor de lamina Masilla sikaflez 1A Limpieza con disco abrasivo o grata metalica Lamina de aluminio antideslizante continua Zoclo de marmol de 10cm Piso de marmol espesor de 2cm de 30 x 30cm beige Junta de paflon del 25% Tubo de acero de d esterior de 40cm Muro divisorio convitec de 4" de espesor Plancha de bronce de 10" x 3/8" de espesor Fe angular de 2" x 2" Tornillo

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, construction details section, cut construction details, details, DWG, facade, Hospital, joint, section, specifications
