Fireplace Stove Details DWG Detail for AutoCAD

Fireplace Stove Details DWG Detail for AutoCAD

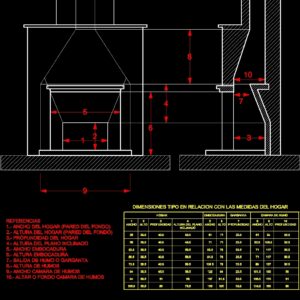

Fireplace stove details measures according stove

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Fireplace detail, Dimensions in relation to household measures, Smoke chamber, throat, mouthpiece, home, depth, high, width, depth, high, width, Inclined plane height, depth, high, width, References home width of household height of home depth height of flat inclined width embouchure height embouchure smoke outlet throat smoke height wide smoke chamber altar bottom chamber

Raw text data extracted from CAD file:

DETALLE DE CHIMENEA DIMENSIONES TIPO EN RELACION CON LAS MEDIDAS DEL HOGAR 66 61 56 50.5 50.5 50.5 50.5 50.5 180 170 150 137 117 117 106.5 94 114.5 106.5 101.5 89 71 71 63.5 61 30.5 30.5 20.5 20.5 20.5 20.5 20.5 20.5 100 91.5 84 76 76 76 71 71 183 137 122 106.5 91.5 86.5 71 61 73.5 66 58.5 50.5 50.5 50.5 45.5 45.5 56 51 45.5 40.5 40.5 40.5 40.5 40.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 106.5 94 84 73.5 58.5 53.5 38 28 CAMARA DE HUMO GARGANTA EMBOCADURA HOGAR 10 PROFUNDIDAD 9 ALTO 8 ANCHO 7 PROFUNDIDAD 6 ALTO 5 ANCHO 4 ALTURA DEL PLANO INCLINADO 3 PROFUNDIDAD 2 ALTO 1 ANCHO REFERENCIAS 1.- ANCHO DEL HOGAR (PARED DEL FONDO) 2.- ALTURA DEL HOGAR (PARED DEL FONDO) 3.- PROFUNDIDAD DEL HOGAR 4.- ALTURA DEL PLANO INCLINADO 5.- ANCHO EMBOCADURA 6.- ALTURA EMBOCADURA 7.- SALIDA DE HUMO O GARGANTA 8.- ALTURA DE HUMOS 9.- ANCHO CAMARA DE HUMOS 10.- ALTAR O FONDO CAMARA DE HUMOS 3 7 10 8 4 6 5 2 1 9

Language	Spanish
Drawing Type	Detail
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	autocad, boiler, chaudière, DETAIL, details, DWG, fireplace, fireplace stoves, fireplaces, kamin ofen, kessel, Measures, open fire stove, stove
