Flat Roof H= 10cm DWG Detail for AutoCAD

Flat Roof H= 10cm DWG Detail for AutoCAD

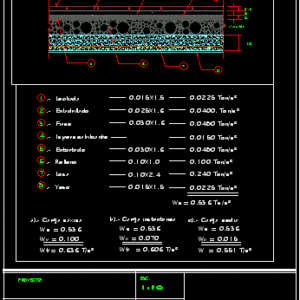

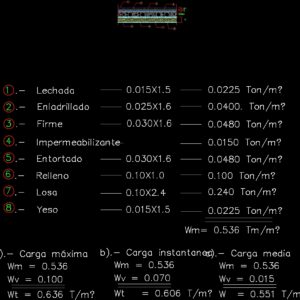

Detail slab of roof with specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

grout, bricklaying, firm, waterproofing, stuck, filling, slab, cast, instant charge, maximum load, average load, variable, flat roof, draft, dimensions, esc, cm.

Raw text data extracted from CAD file:

\A1;2.5 \A1;3 \A1;3 \A1;10 1 .- Lechada 0.015X1.5 2 3 4 5 6 7 8 .- Enladrillado .- Firme .- Impermeabilizante .- Entortado .- Relleno .- Losa .- Yeso 0.025X1.6 0.030X1.6 0.030X1.6 0.10X1.0 0.10X2.4 0.015X1.5 0.0225 Ton/m² 0.0400. Ton/m² 0.0480 Ton/m² 0.0150 Ton/m² 0.0480 Ton/m² 0.100 Ton/m² 0.240 Ton/m² 0.0225 Ton/m² b).- Carga instantanea Wv = 0.070 Wm = 0.536 Wt = 0.606 T/m² Wt = 0.636 T/m² Wv = 0.100 Wm = 0.536 a).- Carga máxima W = 0.551 T/m² Wm = 0.536 Wv = 0.015 c).- Carga media Wm= 0.536 Tm/m² Variable 8 7 6 5 4 3 2 1 5 5 5 5 AZOTEA PLANA PROYECTO COTAS CM 1:10 ESC. H = 10 cm.
