Footing Section DWG Section for AutoCAD

Footing Section DWG Section for AutoCAD

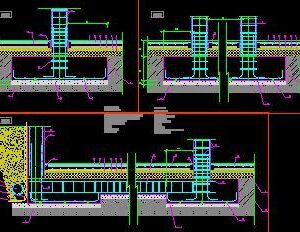

Detail section of brace footing armed concrete

Drawing labels, details, and other text information extracted from the CAD file (Translated from Catalan):

Detail, Ground natural base compacted concrete reinforced wedges support armor cm. Concrete joint of rough surface joint expansion: porexpan thermal insulation solera mallazo solera esperes mur, Armed wall mounted reinforced lattice pillar laminate impermeable evacuation tube gravure geotextile base mortar for pavement vapor barrier

Raw text data extracted from CAD file:

2 3 4 12 13 7 5 6 15 14 8 9 16 1 0.10 0.60 0.35 8 4 2 1 m. 12 3 5 1 0.60 0.10 2 0.60 3 12 8 2.5 0 0 1 2 3 0 11 7 4 5 0.60 12 16 17 15 14 13 0.35 19 7 18 16 17 6 18 7 6 17 16 19 6 19 18 7 17 16 4 5 9 10 16 8 detall 1 detall 2 detall 3 0. Terreny natural 1. Base compactada 2. Formigó de neteja 3. Falques de recolzament d'armadura ³ 5 cm. 4. Junta de formigonat de superfície rugosa 5. Junta dilatació: porexpan 6. Aïllament tèrmic (3cm) 7. Solera 8. Mallazo solera 9. Esperes mur 10. Armat mur 11. Armat riostra 12. Armat pilar 13. Làmina impermeable 14. Delta-drain 15. Tub d'evacuació 16. Grava 17. Geotextil 18. Base morter (3cm) per paviment 19. Barrera de vapor

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, base, brace, concrete, DETAIL, DWG, footing, FOUNDATION, foundations, fundament, section
