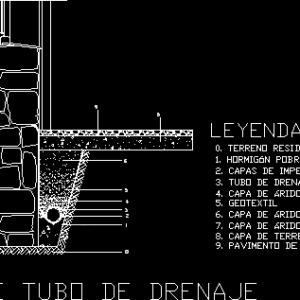

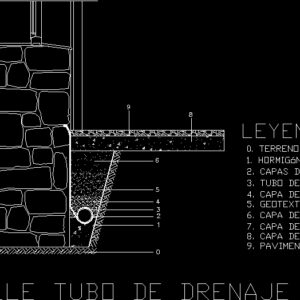

Foundation Drain – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

residual soil compacted to p.n., poor concrete, waterproofing layers, Porous concrete drainage pipe, aggregate layer tmax, geotextile, aggregate layer tmax, rough ground layer, stone pavement, Drainage pipe detail, legend

Raw text data extracted from CAD file:

0. TERRENO RESIDUAL COMPACTADO AL 90% P.N. 1. HORMIGÓN POBRE e=10cm 2. CAPAS DE IMPERMEABILIZACIÓN 3. TUBO DE DRENAJE DE HORMIGÓN POROSO 4. CAPA DE ÁRIDOS Tmax 30-50mm 5. GEOTEXTIL 6. CAPA DE ÁRIDOS Tmax 15-20mm 7. CAPA DE ÁRIDOS Tmax 5-10mm 8. CAPA DE TERRENO BRUTO 9. PAVIMENTO DE PIEDRA DETALLE TUBO DE DRENAJE LEYENDA 0 1 2 3 4 5 6 8 9

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, constructive details, drain, DWG, FOUNDATION, mur de pierre, panel, parede de pedra, partition wall, section, steinmauer, stone walls
