Foundation Metallic Structure DWG Block for AutoCAD

Foundation Metallic Structure DWG Block for AutoCAD

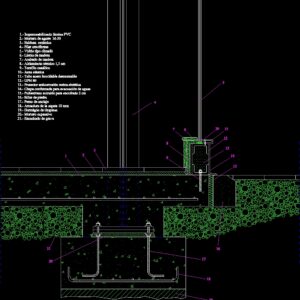

Foundation metallic structure – sole piece – curtain wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pvc sheet waterproofing, gripping mortar, ceramic tile, cruciform pillar, climalit type glass, wood strip, wood finish, thermal insulation cm, metal screw, Removable stainless steel tube, upn, synthetic resin anti-corrosion protector, shaped sheet for water evacuation, extruded polystyrene for shuttering cm, stone ashlar, anchor bolt, Shoe armor mm, cleaning concrete, expansive mortar, gravel pitching, elastic joint

Raw text data extracted from CAD file:

30cm 20cm 10cm 5cm 50cm 1 2 3 4 5 6 7 8 9 10 11 12 14 13 15 16 17 18 19 20 1.- Impermeabilizante lámina PVC 2.- Mortero de agarre M-30 3.- Baldosa cerámica 4.- Pilar cruciforme 5.- Vídrio tipo climalit 6.- Listón de madera 7.- Acabado de madera 8.- Aislamiento térmico 1,5 cm 9.- Tornillo metálico 11.- Tubo acero inoxidable desmontable 12.- UPN 80 13.- Protector anticorrosión resina sintética 14.- Chapa conformada para evacuación de aguas 15.- Poliestireno extruido para encofrado 2 cm 16.- Sillar de piedra 17.- Perno de anclaje 18.- Armadura de la zapata 10 mm 19.- Hormigón de limpieza 20.- Mortero expansivo 21.- Encachado de grava 21 10.- Junta elástica

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, curtain, DWG, FOUNDATION, foundations, fundament, metallic, piece, sole, structure, wall
