Foundation – Steel Frame DWG Detail for AutoCAD

Foundation – Steel Frame DWG Detail for AutoCAD

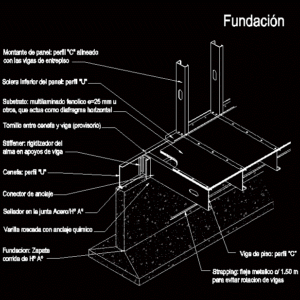

Detail encounter with strip footing foundation of reinforced concrete with steel frame structure.;

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

anchor connector, threaded rod with chemical anchor, sealant in the joint aº, valance: profile, screw between beams, stiffener: web stiffener on beam supports, foundation: zapata race of hº aº, floor girder: profile, strapping: metal strip to prevent rotating beams, substrate: multilayer phenolic mm that acts as horizontal diaphragm, lower panel base: profile, panel pillar: profile aligned with mezzanine beams, Foundation

Raw text data extracted from CAD file:

Conector de anclaje Varilla roscada con anclaje quimico Sellador en la junta Acero/Hº Aº Cenefa: perfil "U" Tornillo entre cenefa y viga (provisorio) Stiffener: rigidizador del alma en apoyos de viga Fundacion: Zapata corrida de Hº Aº Viga de piso: perfil "C" Strapping: fleje metalico c/ 1.50 m para evitar rotacion de vigas Substrato: multilaminado fenolico e=25 mm u otros, que actua como diafragma horizontal Solera inferior del panel: perfil "U" Montante de panel: perfil "C" alineado con las vigas de entrepiso Fundación

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, concrete, DETAIL, detail foundations, DWG, encounter, footing, FOUNDATION, foundations, foundations detail, frame, fundament, reinforced, steel, strip, structure
