Foundations Details DWG Section for AutoCAD

Foundations Details DWG Section for AutoCAD

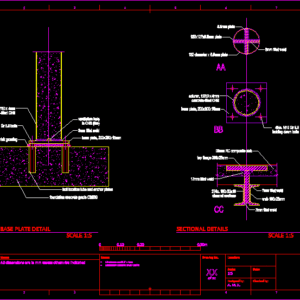

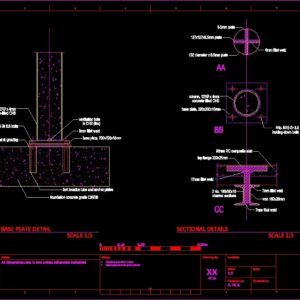

Composite CHS column base plate; built – up beam design and detailing. Beam supporting trapezoidal profile steel decking. Multiple sectional details. Scale 1:5.

Drawing labels, details, and other text information extracted from the CAD file:

drawing title:, project title:, notes:, scale:, date:, designed by:, checked by:, location:, all dimensions are in mm unless otherwise indicated, drawing no., structural details, a. m. x., of xx, notes:, all columns are, lightweight concrete grade, column base plate detail, scale, sectional details, scale

Raw text data extracted from CAD file:

0.10 0.20 0.50m 0 AA BB CC A 1 2 3 6 7 8 1 2 3 6 7 8 4 5 B E F A B E F C D Drawing Title: Project Title: Notes: Scale: Date: Designed by: Checked by: Location: All dimensions are in mm unless otherwise indicated Drawing No. Structural Details 1:5 A. M. X. xx of xx Notes: · All columns are Ø127 x 4mm · Lightweight Concrete grade C25/30 COLUMN BASE PLATE DETAIL SCALE 1:5 SECTIONAL DETAILS SCALE 1:5

Language	English
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units
Footprint Area
Building Features	Deck / Patio
