Gas Meter DWG Block for AutoCAD

Gas Meter DWG Block for AutoCAD

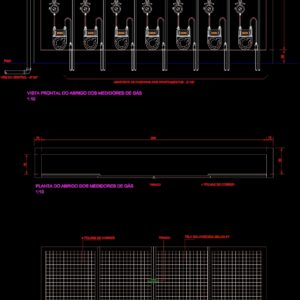

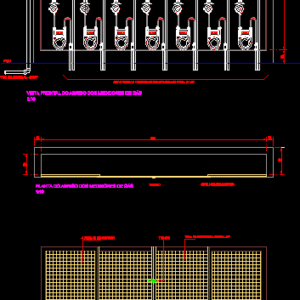

Gas Meter – Views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

latch, Sliding sheets, Gas meters shelter plan, latch, Front view of gas meters shelter grid, Sliding sheets, latch, Galvanized mesh screen, floor, Front view of gas meters shelter, Comes from the central, Supplies the kitchens of the apartments

Raw text data extracted from CAD file:

0 0 10 TRINCO 4 FOLHAS DE CORRER PLANTA DO ABRIGO DOS MEDIDORES DE GÁS 1:10 30 10 205 TRINCO 40 10 VISTA FRONTAL DA GRADE DO ABRIGO DOS MEDIDORES DE GÁS 1:10 4 FOLHAS DE CORRER TRINCO TELA GALVANIZADA MALHA #1" PISO VISTA FRONTAL DO ABRIGO DOS MEDIDORES DE GÁS VEM DA CENTRAL - Ø 3/4" 1:10 ABASTECE AS COZINHAS DOS APARTAMENTOS - Ø 1/2" 25 10 205 120 10

Language	Portuguese
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
